Sampler

A Sampler State is a low-level object that encapsulates how a texture will be sampled in your application.

Creation

To create a sampler, you first need to create the SamplerStateDescription struct:

// Linear clamp sampler state
var samplerDescription = new SamplerStateDescription()
{
    Filter = TextureFilter.MinLinear_MagLinear_MipLinear,
    AddressU = TextureAddressMode.Clamp,
    AddressV = TextureAddressMode.Clamp,
    AddressW = TextureAddressMode.Clamp,
    MinLOD = -1000, // DirectX -float.MaxValue | OpenGL -1000
    MaxLOD = 1000, // DirectX float.MaxValue | OpenGL 1000
    MipLODBias = 0f,
    MaxAnisotropy = 1,
    ComparisonFunc = ComparisonFunction.Never,
    BorderColor = SamplerBorderColor.OpaqueWhite,
};

var samplerState = this.graphicsContext.Factory.CreateSamplerState(ref samplerDescription);

SamplerStateDescription

Property	Type	Description
Filter	`TextureFilter`	Filtering method to use when sampling a texture.
AddressU	`TextureAddressMode`	Method to use for resolving a u texture coordinate that is outside the 0 to 1 range.
AddressV	`TextureAddressMode`	Method to use for resolving a v texture coordinate that is outside the 0 to 1 range.
AddressW	`TextureAddressMode`	Method to use for resolving a w texture coordinate that is outside the 0 to 1 range.
MipLODBias	`float`	Offset from the calculated mipmap level. For example, if Direct3D calculates that a texture should be sampled at mipmap level 3 and MipLODBias is 2, then the texture will be sampled at mipmap level 5.
MaxAnisotropy	`uint`	Clamping value used if `D3D11_FILTER_ANISOTROPIC` or `D3D11_FILTER_COMPARISON_ANISOTROPIC` is specified in Filter. Valid values are between 1 and 16.
ComparisonFunc	`ComparisonFunction`	A function that compares sampled data against existing sampled data.
BorderColor	`SamplerBorderColor`	Border color.
MinLOD	`float`	Lower end of the mipmap range to clamp access to, where 0 is the largest and most detailed mipmap level, and any level higher than that is less detailed.
MaxLOD	`float`	Upper end of the mipmap range to clamp access to, where 0 is the largest and most detailed mipmap level, and any level higher than that is less detailed. This value must be greater than or equal to MinLOD.

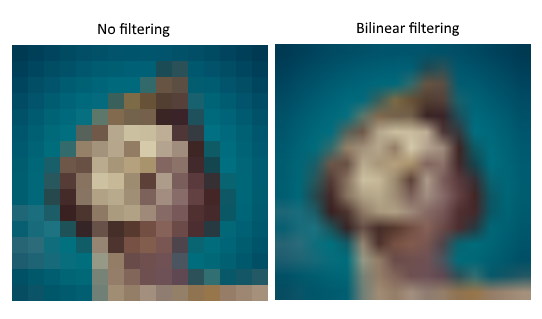

TextureFilter

Defines texture filtering modes for a texture stage.

Graphics

Value	Description
MinPoint_MagPoint_MipPoint	Use point sampling for minification, magnification, and mip-level sampling.
MinPoint_MagPoint_MipLinear	Use point sampling for minification and magnification; use linear interpolation for mip-level sampling.
MinPoint_MagLinear_MipPoint	Use point sampling for minification; use linear interpolation for magnification; use point sampling for mip-level sampling.
MinPoint_MagLinear_MipLinear	Use point sampling for minification; use linear interpolation for magnification and mip-level sampling.
MinLinear_MagPoint_MipPoint	Use linear interpolation for minification; use point sampling for magnification and mip-level sampling.
MinLinear_MagPoint_MipLinear	Use linear interpolation for minification; use point sampling for magnification; use linear interpolation for mip-level sampling.
MinLinear_MagLinear_MipPoint	Use linear interpolation for minification and magnification; use point sampling for mip-level sampling.
MinLinear_MagLinear_MipLinear	Use linear interpolation for minification, magnification, and mip-level sampling.
Anisotropic	Use anisotropic interpolation for minification, magnification, and mip-level sampling.

TextureAddressMode

Your application can assign texture coordinates to any vertex of any primitive. Typically, the u- and v-texture coordinates that you assign to a vertex are in the range of 0.0 to 1.0 inclusive. However, by assigning texture coordinates outside that range, you can create certain special texturing effects.

Value	Description
Wrap	Tile the texture at every (u,v) integer junction. For example, for u values between 0 and 3, the texture is repeated three times.
Mirror	Flip the texture at every (u,v) integer junction. For u values between 0 and 1.
Clamp	Texture coordinates outside the range [0.0, 1.0] are set to the texture color at 0.0 or 1.0, respectively.
Border	Texture coordinates outside the range [0.0, 1.0] are set to the border color specified in SamplerStateDescription.
Mirror_One	Takes the absolute value of the texture coordinate (thus, mirroring around 0), and then clamps to the maximum value.

Graphics

MaxAnisotropy

Retrieves a value that indicates the maximum valid value for anisotropic filtering. Valid values are between 1 and 16.

Graphics

Presets

To simplify sampler construction, you can use Evergine.Common.SamplerStates to describe the most common sampler descriptions:

Value
PointClamp
PointWrap
PointMirror
LinearClamp
LinearWrap
LinearMirror
AnisotropicClamp
AnisotropicWrap
AnisotropicMirror

Default Initialization

public void SetDefault()
{
    this.Filter = TextureFilter.MinLinear_MagLinear_MipLinear;
    this.AddressU = TextureAddressMode.Clamp;
    this.AddressV = TextureAddressMode.Clamp;
    this.AddressW = TextureAddressMode.Clamp;
    this.MinLOD = -1000; // DirectX -float.MaxValue | OpenGL -1000
    this.MaxLOD = 1000; // DirectX float.MaxValue | OpenGL 1000
    this.MipLODBias = 0f;
    this.MaxAnisotropy = 1;
    this.ComparisonFunc = ComparisonFunction.Never;
    this.BorderColor = SamplerBorderColor.OpaqueWhite;
}

Presets Initialization

PointClamp = SamplerStateDescription.Default;
PointClamp.Filter = TextureFilter.MinPoint_MagPoint_MipPoint;

PointWrap = SamplerStateDescription.Default;
PointClamp.Filter = TextureFilter.MinPoint_MagPoint_MipPoint;
PointWrap.AddressU = TextureAddressMode.Wrap;
PointWrap.AddressV = TextureAddressMode.Wrap;
PointWrap.AddressW = TextureAddressMode.Wrap;

PointMirror = SamplerStateDescription.Default;
PointClamp.Filter = TextureFilter.MinPoint_MagPoint_MipPoint;
PointMirror.AddressU = TextureAddressMode.Mirror;
PointMirror.AddressV = TextureAddressMode.Mirror;
PointMirror.AddressW = TextureAddressMode.Mirror;

LinearClamp = SamplerStateDescription.Default;

LinearWrap = SamplerStateDescription.Default;
LinearWrap.AddressU = TextureAddressMode.Wrap;
LinearWrap.AddressV = TextureAddressMode.Wrap;
LinearWrap.AddressW = TextureAddressMode.Wrap;

LinearMirror = SamplerStateDescription.Default;
LinearMirror.AddressU = TextureAddressMode.Mirror;
LinearMirror.AddressV = TextureAddressMode.Mirror;
LinearMirror.AddressW = TextureAddressMode.Mirror;

AnisotropicClamp = SamplerStateDescription.Default;
AnisotropicClamp.Filter = TextureFilter.Anisotropic;

AnisotropicWrap = SamplerStateDescription.Default;
AnisotropicWrap.Filter = TextureFilter.Anisotropic;
AnisotropicWrap.AddressU = TextureAddressMode.Wrap;
AnisotropicWrap.AddressV = TextureAddressMode.Wrap;
AnisotropicWrap.AddressW = TextureAddressMode.Wrap;

AnisotropicMirror = SamplerStateDescription.Default;
AnisotropicMirror.Filter = TextureFilter.Anisotropic;
AnisotropicMirror.AddressU = TextureAddressMode.Mirror;
AnisotropicMirror.AddressV = TextureAddressMode.Mirror;
AnisotropicMirror.AddressW = TextureAddressMode.Mirror;
