Getting Started

---

Follow these steps to begin working with 3D Gaussian Splatting in your Evergine applications:

Project Setup

1. Create a New Project

Use Evergine Launcher to start a new project. Along with Windows, select an additional template for your target device.

2. Add the Evergine.GaussianSplatting Add-on

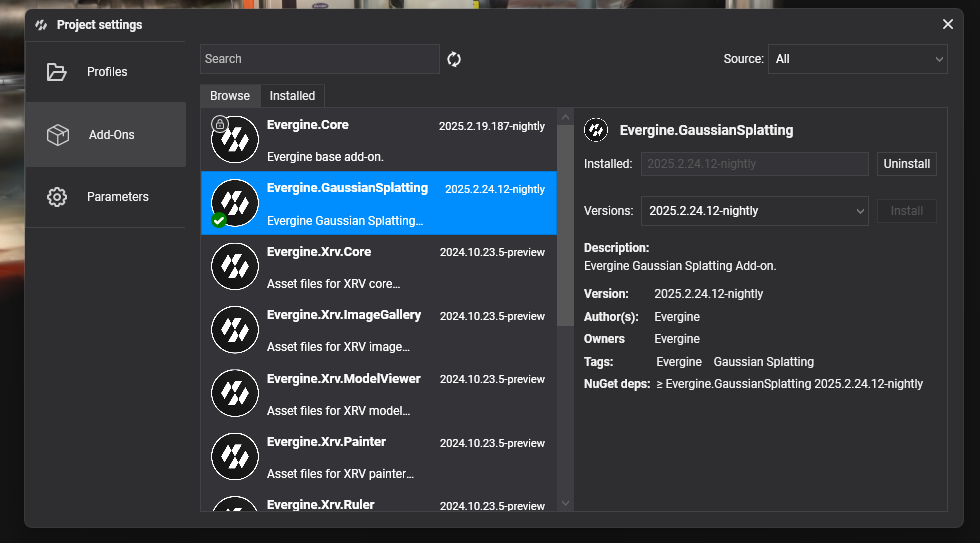

Open Evergine Studio and add the Evergine.GaussianSplatting add-on to your project. Refer to this guide for instructions on adding add-ons.

Note

If you are using a Web profile, you need to perform the additional steps described in this document: Setup Gaussian Splatting on the Web Platform

Note

Gaussian Splatting add-ons are available as NuGet packages. For nightly builds, update nuget.config to include the Evergine nightly feed:

<?xml version="1.0" encoding="utf-8"?>
<configuration>
 <packageSources>
   <add key="nuget.org" value="https://api.nuget.org/v3/index.json" />
   <add key="Evergine Nightly" value="https://pkgs.dev.azure.com/plainconcepts/Evergine.Nightly/_packaging/Evergine.NightlyBuilds/nuget/v3/index.json" />
 </packageSources>
</configuration>

3. Add Your Splat File to the Project

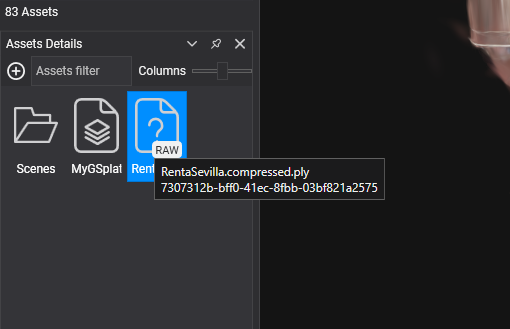

In Evergine Studio, add a supported 3D Gaussian Splatting file (.splat or compressed .ply file) to your project:

4. Instantiate Gaussian Splatting prefab

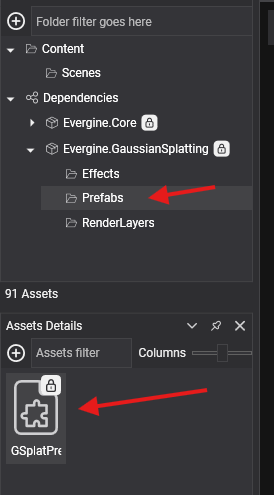

Instantiate the GSplatPrefab prefab in your scene, located in the Dependencies > Evergine.GaussianSplatting > Prefabs folder:

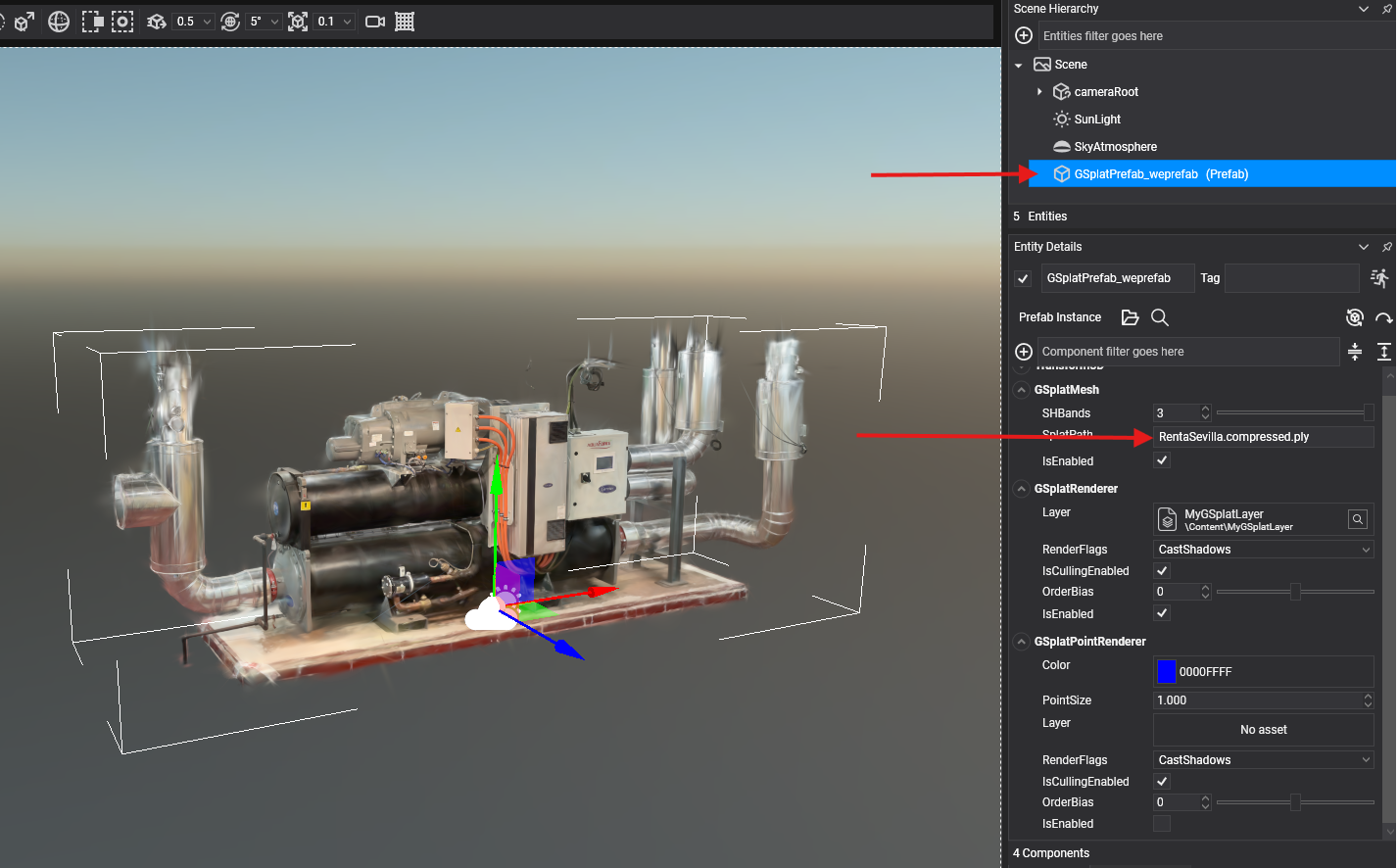

In the GSplatMesh component, set the SplatPath property to the path of the 3D Gaussian Splat file:

This prefab creates an Entity and adds the following components:

• GSplatMesh: Responsible for loading the Gaussian Splatting file.
• GSplatRenderer: A drawable that renders the Gaussian Splatting.
• GSplatPointRenderer: A drawable (disabled by default) that renders a point cloud using the splat centers.

Component Properties

GSplatMesh Properties

The GSplatMesh component has the following properties:

Property	Description
SplatPath	The path to the Gaussian Splatting file. You can change this property at runtime to dynamically update the Gaussian Splatting scene.
SHBands	The number of Spherical Harmonics bands used to render the Gaussian Splatting scene.
IsSplatSceneLoaded	Indicates whether a Gaussian Splatting scene is loaded.
Layer	The layer used to render the Gaussian Splatting.

And the following event:

Event	Description
OnSplatSceneLoaded	Triggered when a Gaussian Splatting scene is successfully loaded.

GSplatRenderer Properties

The GSplatRenderer is a Drawable3D component that renders the Gaussian Splatting loaded in the GSplatMesh component. It has the following property:

Property	Description
Layer	The layer used to render the Gaussian Splatting.

GSplatPointRenderer

The GSplatPointRenderer component has the following properties:

Property	Description
Color	The color of the points.
PointSize	The size of the points (in pixels).
Layer	The layer used to render the Gaussian Splatting point cloud.

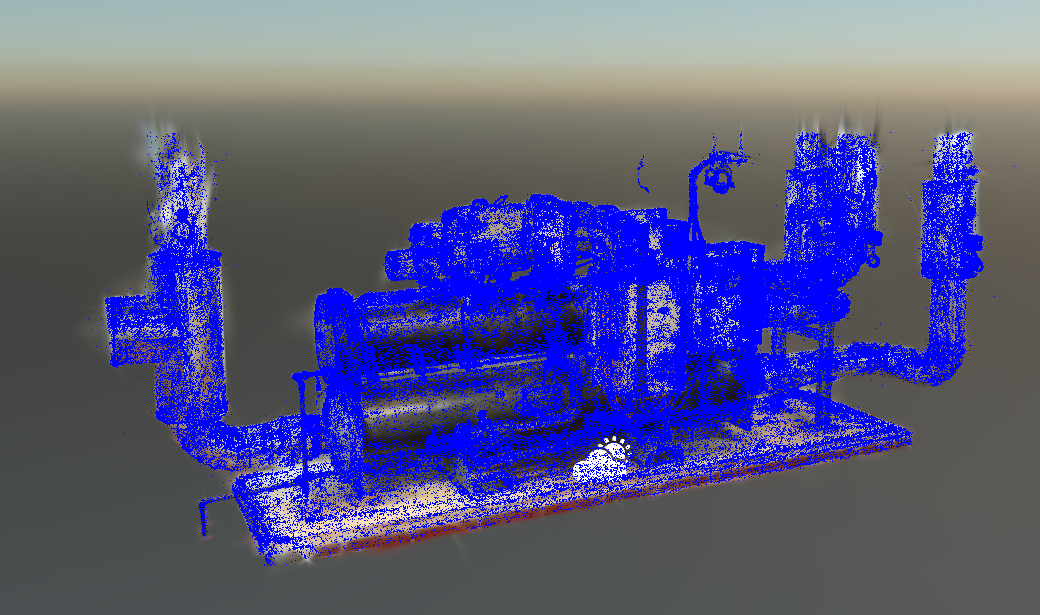

This component renders a point at each splat center:

Create Gaussian Splatting from Code

The following code demonstrates how to load a Gaussian Splatting file into your Evergine scene:

var gaussianSplattingEntity = new Entity()
    .AddComponent(new Transform3D())
    .AddComponent(new GSplatMesh()
    {
        SplatPath = "MySplatPlyFile.ply"
    })
    .AddComponent(new GSplatRenderer())
    .AddComponent(new GSplatPointRenderer(){ IsEnabled = false}); // Add this component if you want to render the splats point cloud...


this.Managers.EntityManager.Add(gaussianSplattingEntity);
