Cone Collider

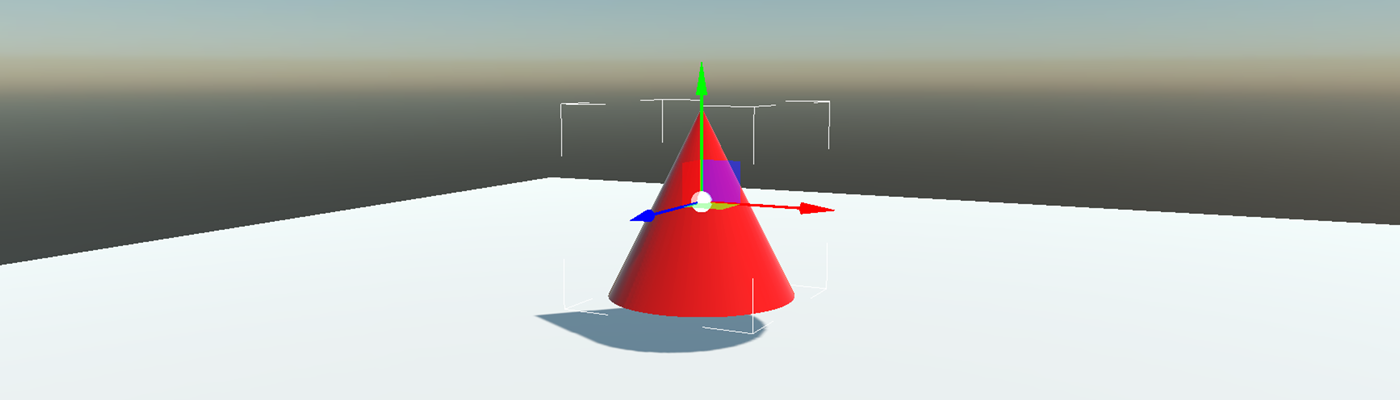

A cone-shaped collider.

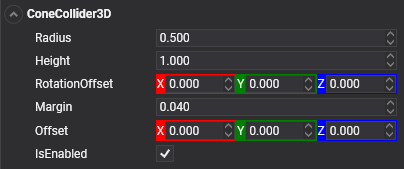

ConeCollider3D Component

To use a Cone Collider in Evergine, you only need to add a ConeCollider3D component to your entity:

Properties

Property	Default	Description
Radius	0.5	This property defines the radius of the cone collider. The Radius value can be used in two ways: If the entity has a mesh (with MeshComponent, for example), the Radius value is relative to the mesh extents. If the entity does not have any meshes, the Radius value is used as scene units.
Height	1	This property defines the total height of the cone collider. The Height value can be used in two ways: If the entity has a mesh (with MeshComponent, for example), the Height value is relative to the mesh height. If the entity does not have any meshes, the Height value is used as scene units.
Offset	0,0,0	Offsets the collider with respect to the owner entity. The Offset value can be used in two ways: If the entity has a mesh (with MeshComponent, for example), the Offset value is relative to the mesh extents. If the entity does not have any meshes, the Offset value is used as scene units.
Margin	0.04	The physics engine uses a small collision margin for collision shapes to improve performance and reliability of the collision detection.
