CAD Runtime Models

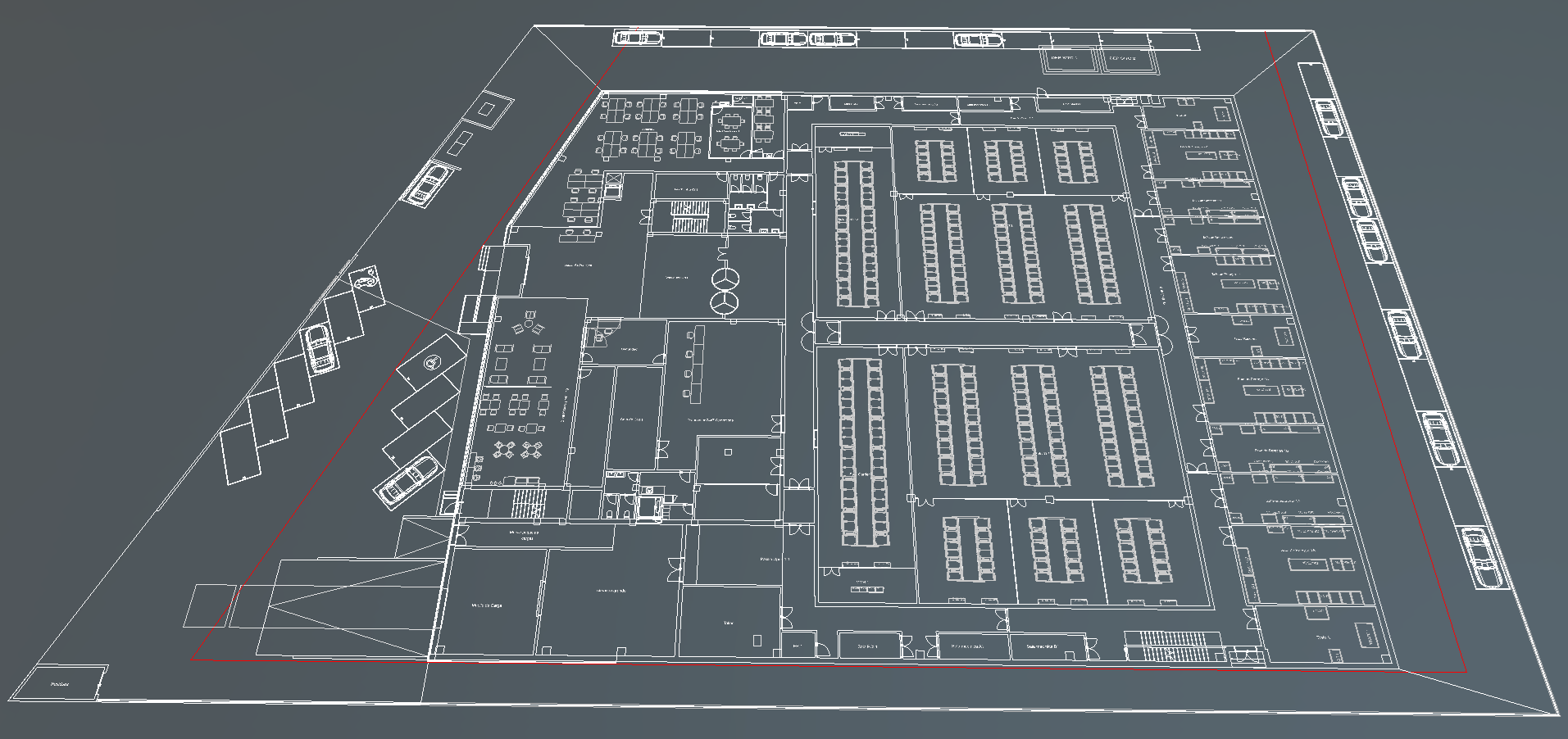

Evergine Runtime Models

The Evergine.Runtime.CAD NuGet package provides a powerful and efficient solution for dynamically loading CAD files at runtime. It is designed for real-time applications and integrates seamlessly into your Evergine projects.

Supported CAD Features

The Evergine.Runtimes.CAD namespace includes a robust CAD file loader that supports a comprehensive range of features:

✅ Features

1. Supported CAD File Types

  • DXF: R12 through R2024 (ASCII & Binary)
  • DWG: R14 through R2024
  • Uses ACadSharp for reading and processing CAD documents.

2. Geometry & Entities

  • Geometry: Point, Line, Circle, Arc, Ellipse, Spline, 2D Polylines, Ray, XLine, Solid, Face3D
  • Text: TextEntity, MText with alignment, rotation and background rectangles
  • Hatches: Solid fills.
  • Blocks & Inserts: Nested blocks with transformation, color and layer inheritance
  • Metadata: Layers (name, color, visibility, frozen), extended data (XData), block attributes

3. Efficient Rendering (Line Batching)

  • Implements CAD element rendering via a DrawableLineBatch system for all geometry and Text3D for text entities.

4. Runtime Customization

  • Configure the CAD reader via an options object:
    • Precision (int): tessellation precision for curves (default: 32)
    • DXFMTextSize (float): height for multiline text (MText) in DXF files (default: 0.5f)
    • MetersPerUnit (float?): manual scale factor converting CAD units to meters; if null, uses the units defined in the CAD document
    • Font (Evergine.Framework.Graphics.Font): optional Evergine font for text rendering; if null, uses the default font
    • EnableTextRendering (bool): enables/disables text entity rendering (MText, TextEntity, AttributeEntity) for performance optimization (default: true)
var assetsService = Application.Current.Container.Resolve<AssetsService>();
var myFont = assetsService.Load<Font>(EvergineContent.Fonts.MyFont_ttf);

var options = new CADReadOptions
{
    Precision = 32,
    DXFMTextSize = 0.5f,
    MetersPerUnit = 0.01f,
    Font = myFont,
    EnableTextRendering = true,
};
var model = await CADRuntime.Instance.Read(filepath, options);

Limitations

1. CAD Entities Limitations

  • Visual line styles (dashed, dotted, varying line weights, linetypes) are not currently supported—everything is rendered as simple solid lines.
  • Hatch rendering is limited: complex patterns and gradient fills are exploded into basic line geometry.
  • No support for 3D CAD models: only 2D geometry (planar entities) is processed and rendered.

2. CAD File Handling Limitations

Based on the capabilities of the ACadSharp.

Supported DXF/DWG Versions
Version DxfReader DxfWriter DwgReader DwgWriter
AC1009 ❌ ❌ ❌ ❌
AC1012 ✔️ ✔️ ❌ ❌
AC1014 ✔️ ✔️ ✔️ ✔️
AC1015 ✔️ ✔️ ✔️ ✔️
AC1018 ✔️ ✔️ ✔️ ✔️
AC1021 ✔️ ✔️ ✔️ ❌
AC1024 ✔️ ✔️ ✔️ ✔️
AC1027 ✔️ ✔️ ✔️ ✔️
AC1032 ✔️ ✔️ ✔️ ✔️

⚠️ These limitations are subject to change in future updates.

Getting Started

To start using the Evergine.Runtimes.CAD libraries, simply install the NuGet package and use the following code to load your assets:

protected async override void CreateScene()
{
    var assetsService = Application.Current.Container.Resolve<AssetsService>();
    var entity = await CADRuntime.Instance.Read("myCADFile.dxf");
    this.manager.EntityManager.Add(entity);
}

Samples

The CAD Runtime has been tested with the following publicly available datasets:

These tests help ensure compatibility with a wide range of DXF & DWG files. Below are several representative screenshots of CAD files successfully loaded and rendered at runtime:

Sample screenshots

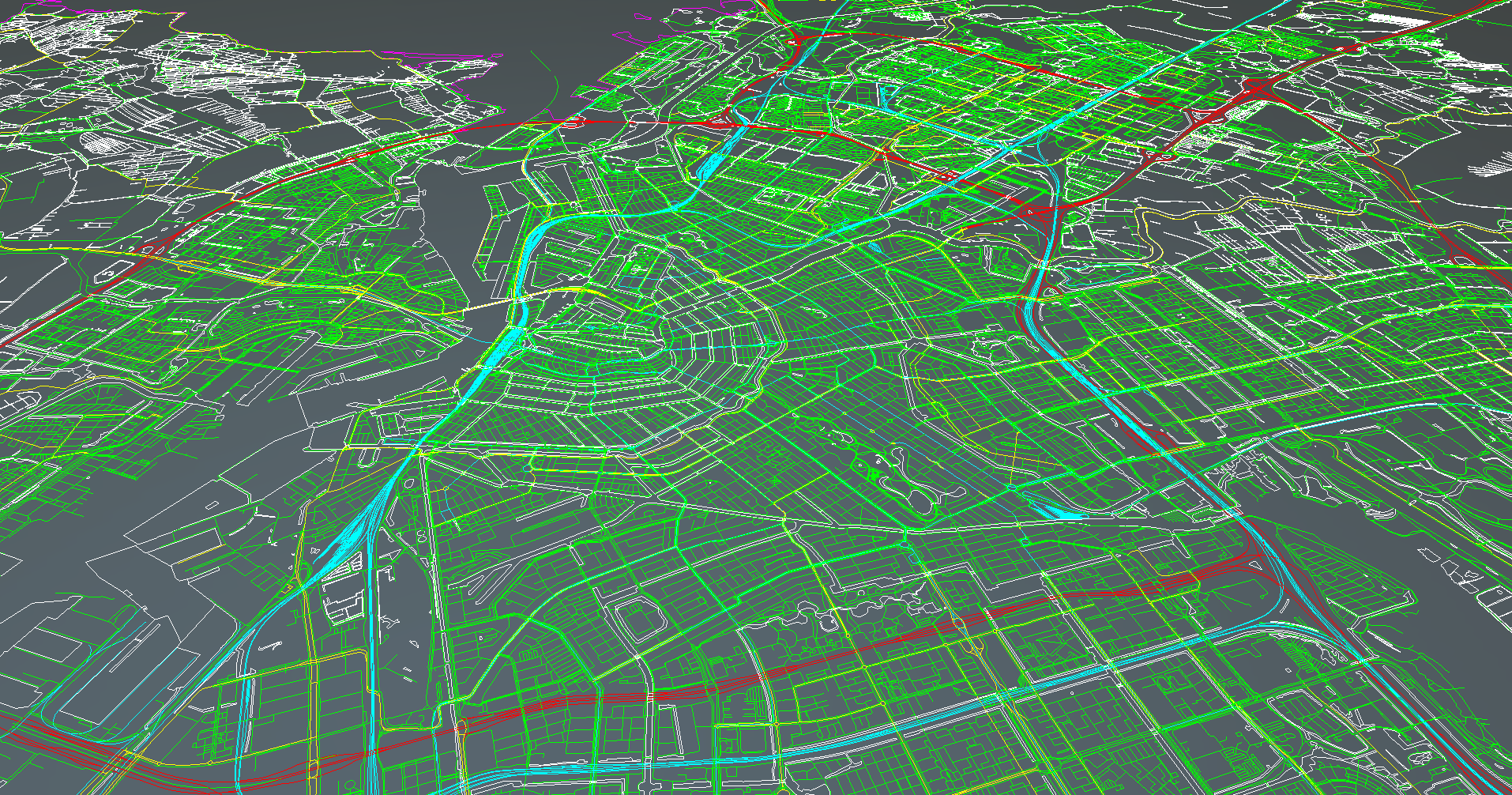

CADMAPPER
Amsterdam map (DXF).

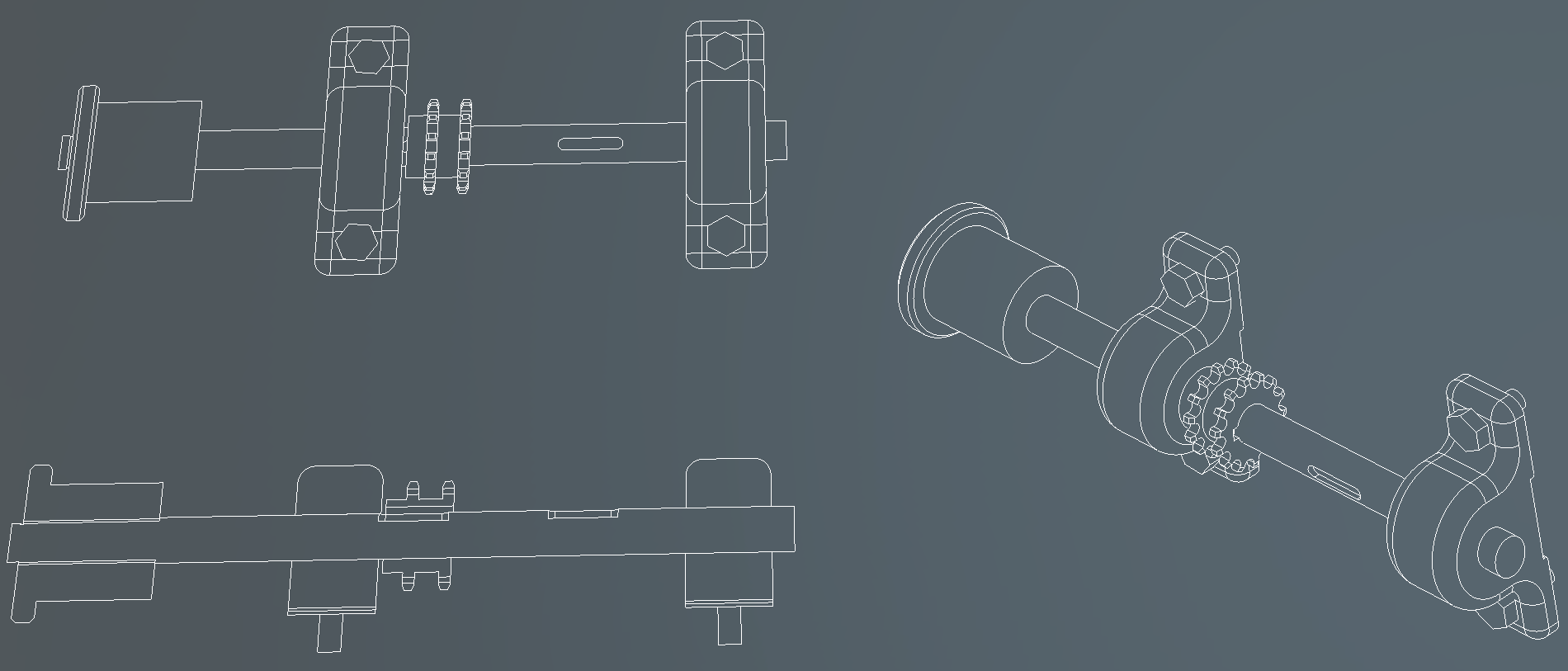

AutoCAD Samples
AutoCAD Samples (DWG)
