Animation Blend Tree

In complex animation systems, it is essential to blend multiple animations seamlessly based on various input conditions. Evergine allows the creation of an Animation Blend Tree system, which blends different animations based on parameters such as time (for transitions) or hierarchy. This results in smoother transitions between animations like walking, running, jumping, or transitioning between idle and action states.

AnimationBlendClip

This class represents a node in the animation blending tree. It is an abstract class, so there are multiple node types, each with a specific behavior.

Base properties

Property	Description
HierarchyMapping	The hierarchy map object, that maps the model node with its intantiated entity in the scene.
ListenKeyframeEvents	If the blend clips launch keyframe events.
GlobalStartTime	The animation's global start time.
Loop	If the animation is looping.
PlayTime	The current time of the animation's execution.
Frame	The current frame of the animation.
Phase	the normalized time [0, 1], where 1 is the end of the animation clip.
PlaybackRate	(1 by default) The speed factor of the playback.

Base methods

The most important method is:

// Note the return type.
public abstract AnimationBlendClip UpdateClip();

The most important aspect of this method is that it returns an AnimationBlendClip. This allows you to change the type of the animation blend clip, enabling dynamic changes in behavior.

Now, let's explain the different types of AnimationBlendClip:

AnimationTrackClip

The most important node. It simply plays the AnimationClip track from the asset model, passed as a constructor parameter. When playing an animation from the model, the animation blend tree consists solely of this node.

BinaryAnimationBlendClip

An abstract class that manages two different AnimationBlendClips. It contains two additional properties:

Property	Description
ClipA	(Getter only, passed as a constructor parameter) The AnimationBlendClip of the "left" sub-node of the blending tree.
ClipB	(Getter only, passed as a constructor parameter) The AnimationBlendClip of the "right" sub-node of the blending tree.

It is up to the derived classes to specify how to handle these two AnimationBlendClips.

TransitionClip

This BinaryAnimationBlendClip transitions from ClipA to ClipB during the duration of this animation clip. When the transition is finished, the UpdateClip method returns ClipB, finishing the transition.

SynchronizedTransitionClip

This BinaryAnimationBlendClip also lerps between ClipA and ClipB, but it syncrhonizes the phase of the two animation blend clips, useful for transitions between different character animations like running or walking. The Lerp of the transition is controlled by the user, instead of automatically being updated, like the previous clip.

AdditiveBlendingClip

This BinaryAnimationBlendClip adds ClipB animation blend clip on top of ClipA, using a specific Lerp controlled by the user. This is useful when each animation changes different parts of the model. For example we can have an "walk" animation and a "carry a candle" animation.

Sample

The next sample we will blend the animation of a character between 'crouch', 'walk' and 'run' animations.

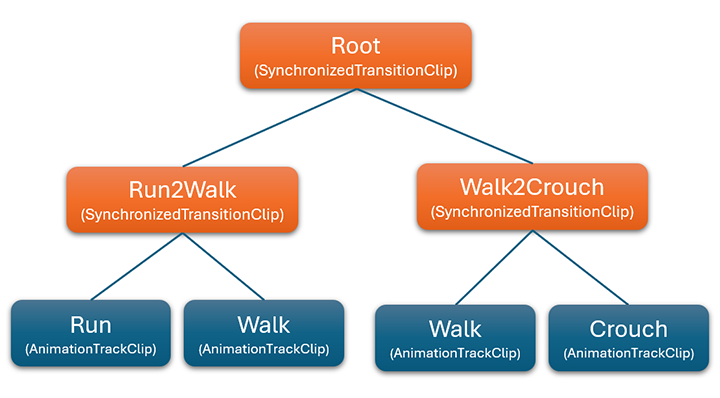

To do that, we will create the following blend tree:

// First we load the three AnimationTrackClips of the base animations.
var crouchTrack = new AnimationTrackClip(model.Animations["crouch"], looping: true);
var walkTrack = new AnimationTrackClip(model.Animations["walk"], looping: true);
var runTrack = new AnimationTrackClip(model.Animations["run"], looping: true);

// Because we want to blend 3 animations, we have to create a  2 level tree of SynchronizedTransitionClip and some leaves for the AnimationTrackClip.
var crouch2WalkClip = new SynchronizedTransitionClip(chrouchTrack, walkTrack);
var walk2RunClip = new SynchronizedTransitionClip(walkTrack, runTrack);
var rootClip = new SynchronizedTransitionClip(crouch2WalkClip, walk2RunClip);

// We finally can play this animation.
animation3DComponenet.PlayAnimation(rootClip);
