Particle Forces

Particle forces are components that, once attached to an entity, can alter the behavior of a Particle System. They primarily alter the velocity of the particles according to a set of rules.

Creating Forces in Evergine Studio

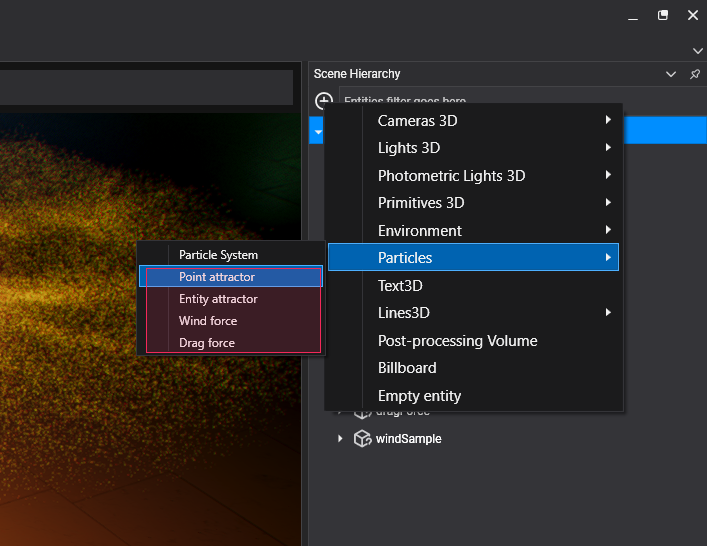

In the Entities Hierarchy panel of your Scene Editor, click "Add Entity" and select Particles, then choose the type of force you want to create:

• Point attractor
• Entity attractor
• Wind force
• Drag force

We will discuss the force types later in this article.

This will create a new entity in the Scene.

The newly created entity has a Transform3D component and a new component, depending on the type of force (see below).

Creating Forces by Code

The following sample code can be used to instantiate an existing material asset and apply it to an entity in your scene.

protected override void CreateScene()
{
    // Creates the entity. A Point Attractor in this sample.
    Entity particleForce = new Entity()
        .AddComponent(new Transform3D())
        .AddComponent(new PointAttractorForce()
        {
            ForceCategory = CollisionCategory3D.All
        });

    this.Managers.EntityManager.Add(particleForce);
}

Common Properties

All particle forces share a common base class (BaseForce). This class contains the following properties, making them accessible to all forces:

Property	Default value	Description
Strength	1	Factor of how much the force affects the particles.
Force Category	All	Category of the force. A force only affects particle systems that share the same ForceCategory.
Range Enabled	true	If the force has a maximum range effect.
Range	1	The maximum distance at which the particle system is affected by the force.
Decay Enabled	true	If true, the particle force will decay over its range.

Types of Forces

As stated previously, Evergine supports the following particle system forces:

Point Attractor Force

This force gravitationally pulls all the particles into a point. In addition to the common properties of the base class, Particle Attractor Force adds properties for managing a cutout behavior.

Cutout Effect

The cutout effect is a behavior affecting particles that get closer to the attractor center. Instead of being gravitationally pulled to the center and orbiting around that point, the cutout effect causes particles to be dragged directly to its center without escaping or continuing to orbit. This is useful when we want to control particles that go to a specific point without endlessly orbiting around its center.

Property	Default value	Description
Cutout Enabled	false	Enables the cutout behavior of the force.
Cutout Strength	All	The intensity at which the particles are dragged into a vortex pit.
Cutout Range	true	The range within which the particles start falling into the force center.

Entity Attractor Force

The Entity Attractor Force is similar to the Point Attractor Force, but the particles are attracted to an Entity, specifically to all the meshes contained in an entity. It has the same Cutout parameters as previously stated, but in addition, it has the following properties:

Property	Default value	Description
Source Entity Path	null	The path of the target entity of the force.
Source Topology	Vertex	The part of the mesh topology towards which the particles are attracted. Its values can be Vertex or Triangle.

Note

In this version, Evergine does not support Triangle as Source Topology.

Wind Force

The Wind Force pushes the particles in the entity's forward direction around its effect area (if the range is enabled). It doesn't have additional parameters. Its strength controls how much the particles are pushed by the wind.

Drag Force

The Drag Force drags the particles around its effect area (if the range is enabled). It doesn't have additional parameters. Its strength controls how much the particles are dragged by the force.
