Custom Postprocessing Graph

---

This section explains how to create your custom postprocessing graph, which can be useful if you want to create and test effects that are not available in the default postprocessing graph.

Example

For this example, we are going to create a simple filter that renders only the red component of the input render.

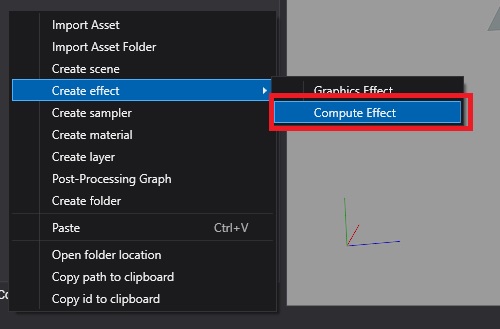

First, create a compute effect from the Assets Details panel:

Write the code for our custom filter in the Effect Editor:

[Begin_ResourceLayout]

    Texture2D input : register(t0);
    RWTexture2D<float4> Output : register(u0);

    SamplerState Sampler : register(s0);

[End_ResourceLayout]

[Begin_Pass:Default]

    [Profile 11_0]
    [Entrypoints CS = CS]

    [numthreads(8, 8, 1)]
    void CS(uint3 threadID : SV_DispatchThreadID)
    {
        float2 outputSize;
        Output.GetDimensions(outputSize.x, outputSize.y);
        float2 uv = (threadID.xy + 0.5) / outputSize;

        float4 color = input.SampleLevel(Sampler, uv, 0);

        Output[threadID.xy] = float4(color.x, 0, 0, 1);
    }

[End_Pass]

Create a new Postprocessing graph asset from the Assets Details panel:

After creating the postprocessing graph asset, double-click on the asset to open the Postprocessing Graph Editor. You will see an empty postprocessing graph where the render node connects directly with the Screen node.

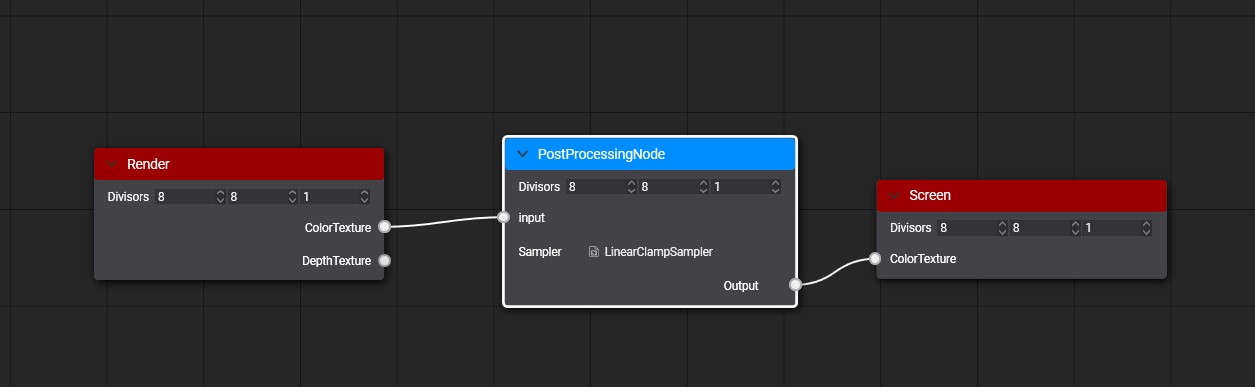

Drag our compute effect from the Available Effects panel to the graph editor to create a new node. Then connect the render node's Color texture port with the Custom node's Input port and the Custom node's Output port with the Screen node's Color Texture port.

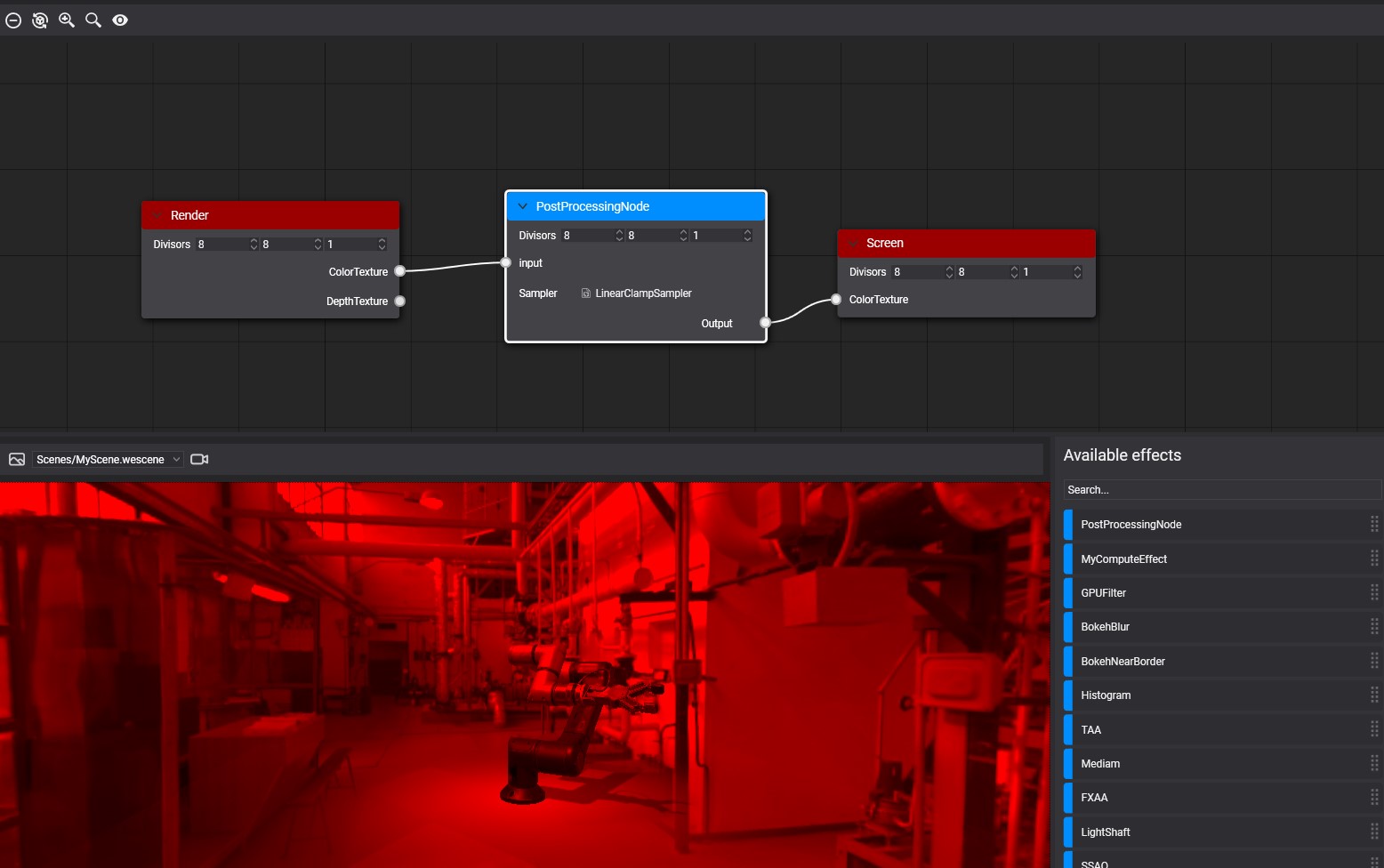

After saving the graph, you can see the result in the viewport panel.

To use your custom postprocessing graph in your scene, read more details in the using postprocessing graph section.

Special Nodes

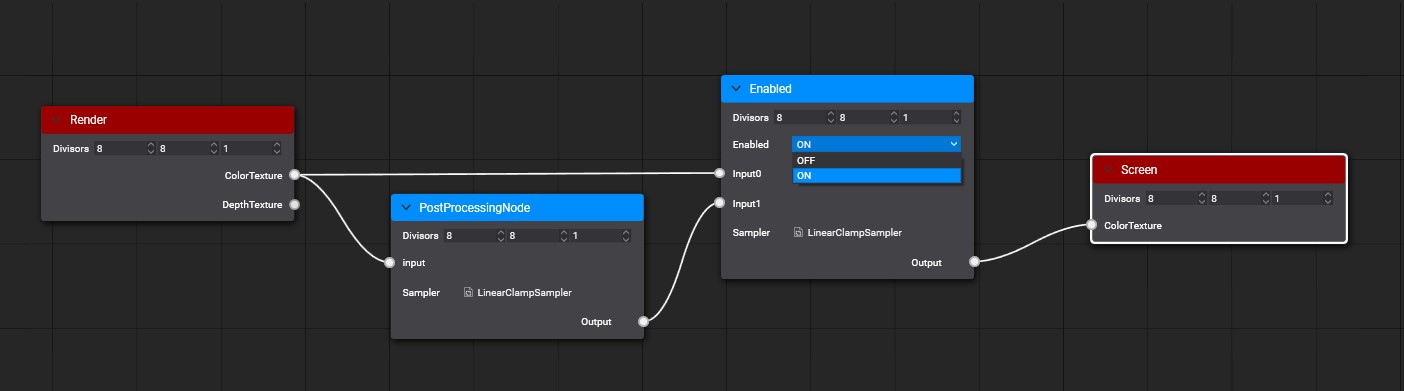

There is a special node named Enable that you can use to enable or disable an effect in your graph. The Enable node has two inputs: the input0 port connects with the path without applying the effect, and the input1 port connects with the path with the effect applied. Using its Enabled parameter, you can select which path will be used by the output port. The system analyzes the graph before use and discards the unused paths. For example, we are going to add this special node to our example.

Special [Output] Metatags

There are special compute effect metatags used by the Postprocessing graph. The metatags Output can be used to define the output texture of any node. By default, the output texture is created using the first input texture information, but you can configure it with Output metatags. With these special metatags, you can define the width, height, and pixel format of the node output texture.

Output Overloading

[Output(ReferencedInput)]

[Output(ReferencedInput, ScaleFactor)]

[Output(ReferencedInput, ScaleFactor, PixelFormat)]

[Output(width, height, PixelFormat)]

The metatag parameters are:

Parameter	Description
ReferencedInput	Input name used to get width, height, and pixel format of the output texture.
ScaleFactor	Defines the scale factor applied to the width and height of the ReferencedInput to get the output width and height dimensions.
PixelFormat	Defines the pixel format of the output texture.
Width	Defines the width dimension of the output texture.
Height	Defines the height dimension of the output texture.

Example

In the following example, the Depth input texture has a 1920x1080 dimension and D24_UNorm_S8_UInt pixel format.

Texture2D<float> Depth : register(t0);

RWTexture2D<float4> PositionOutput : register(u0);   [Output(Depth, 1, R16G16B16A16_Float)]
RWTexture2D<float2> VelocityOutput : register(u1);   [Output(Depth, 0.5, R16G16_Float)]
RWTexture2D<float> LinealDepthOutput : register(u2); [Output(500, 500, R32_Float)]

The result of the resolved output tags will be:

Output Texture	Dimensions	Pixel Format
PositionOutput	1920x1080	R16G16B16A16_Float
VelocityOutput	960x540	R16G16_Float
LinealDepthOutput	500x500	R32_Float

Postprocessing Graph Decorator

You can create a C# class extending from PostProcessingGraphDecorator to define how your custom postprocessing graph is displayed on the PostProcessingGraphRenderer component. You only need to implement the GenerateUI method using the Editor extensions. More details can be found here.
