Character Controller

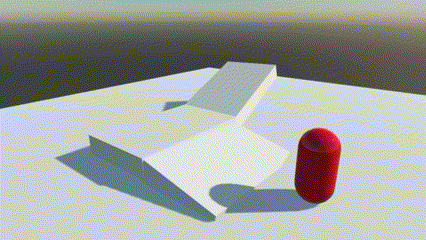

The character controller is a type of physics body used for player objects to provide collision-based physics while also allowing for more customizations dedicated to game characters (player or NPCs). It's a common choice for first-person and third-person games.

In Evergine, we use the CharacterController3D component to provide this functionality.

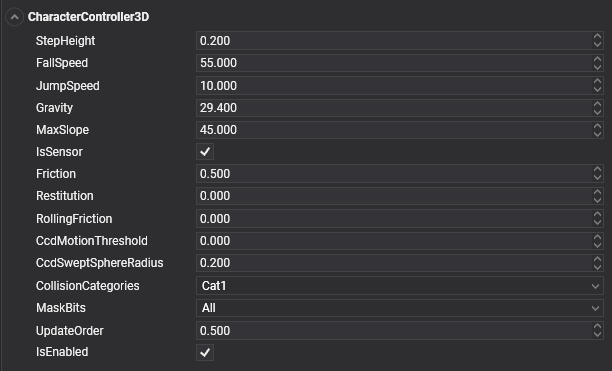

CharacterController3D Component

General Properties

Property	Default	Description
Restitution	0	Sets the amount of kinetic energy lost or gained after a collision. A typical value is between 0 and 1. If the restitution property of colliding bodies is 0, the bodies lose all energy and stop moving immediately on impact. If the restitution is 1, they lose no energy and rebound with the same velocity they collided at. Use this to change the "bounciness" of rigidbodies.
Friction	0.5	Sets the surface friction.
RollingFriction	0	Sets the rolling friction.
IsSensor	true	Characters are a special type of physics body and by default are created as sensors.
CollisionCategory	Cat1	The CollisionCategory flag specifies the category of this body.
MaskBit	All	The MaskBits indicate with which categories this body will collide.

Character Properties

The following properties affect the movement of the rigidbody.

Property	Default	Description
StepHeight	0.2	The maximum height the character can step onto.
FallSpeed	55	Maximum velocity of a character in free fall (m/s). By default, it is 55, the terminal velocity of a sky diver.
JumpSpeed	10	Jump speed.
MaxSlope	45	Limits the character to only climb slopes that are less steep (in degrees) than the indicated value.
Gravity	29.4	3G gravity acceleration.

Useful Methods

To control a character, you may find these methods useful:

Method	Description
SetVelocity(velocity)	Sets the character velocity. This is the most common way to move and control a character. After setting a velocity vector, the character will move in that direction and will interact with the physics world.
Jump(), Jump(jumpDirection)	The character performs a jump movement. You can specify an optional jump direction.
Teleport(newPosition)	Teleports the character to a new position.

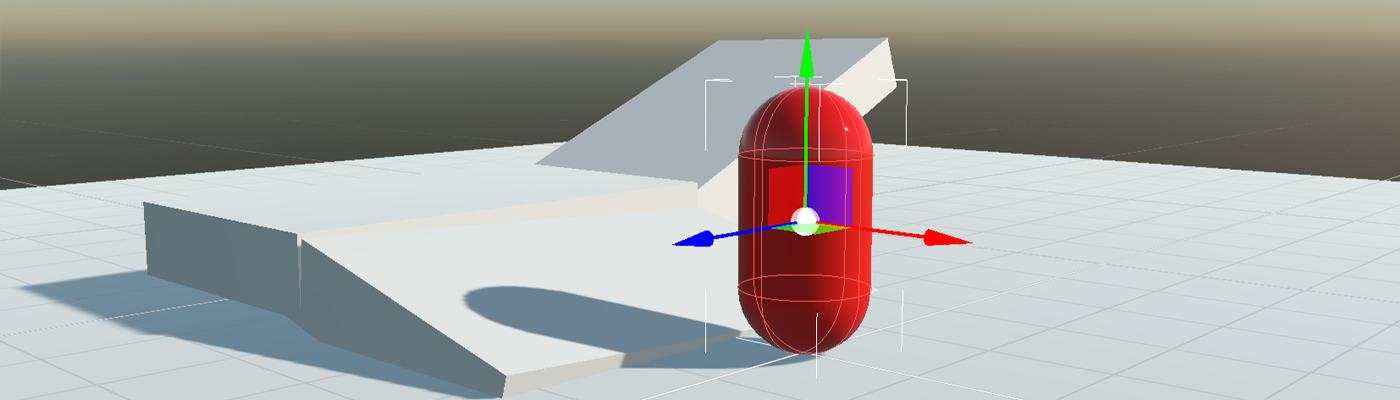

Create a Character Controller

From Code

This code is used to create a character body:

Entity character = new Entity()
    .AddComponent(new Transform3D() { Position = characterPosition })
    .AddComponent(new MaterialComponent() { Material = material }) // assign a material
    .AddComponent(new CapsuleMesh())
    .AddComponent(new MeshRenderer())
    .AddComponent(new CharacterController())    // Add a CharacterController3D component...
    .AddComponent(new CapsuleCollider3D())      // Assign a CapsuleCollider3D to the physics body...
    .AddComponent(new MoveCharacterBehavior()); // Add a component that will control the character.

this.Managers.EntityManager.Add(character);

However, we need a component that moves the CharacterController3D component. The following component captures some keys to move and jump the character.

public class MoveCharacterBehavior : Behavior
{
    [BindComponent]
    private CharacterController3D character;

    public float Speed { get; set; } = 3;

    protected override void Update(TimeSpan gameTime)
    {
        // Gets the keyboard
        var keyboard = this.Managers.RenderManager.ActiveCamera3D.Display.KeyboardDispatcher;

        // Use keys (I, K, J, L) to move the character...
        var velocity = Vector3.Zero;
        if (keyboard.IsKeyDown(Evergine.Common.Input.Keyboard.Keys.I)) { velocity += Vector3.Forward; }
        if (keyboard.IsKeyDown(Evergine.Common.Input.Keyboard.Keys.K)) { velocity += Vector3.Backward; }
        if (keyboard.IsKeyDown(Evergine.Common.Input.Keyboard.Keys.J)) { velocity += Vector3.Left; }
        if (keyboard.IsKeyDown(Evergine.Common.Input.Keyboard.Keys.L)) { velocity += Vector3.Right; }

        // Update the character velocity...
        this.character.SetVelocity(velocity * this.Speed);

        // Jump if we press the space key...
        if (keyboard.IsKeyDown(Evergine.Common.Input.Keyboard.Keys.Space)) { this.character.Jump(); }
    }
}
