Runtimes Models

---

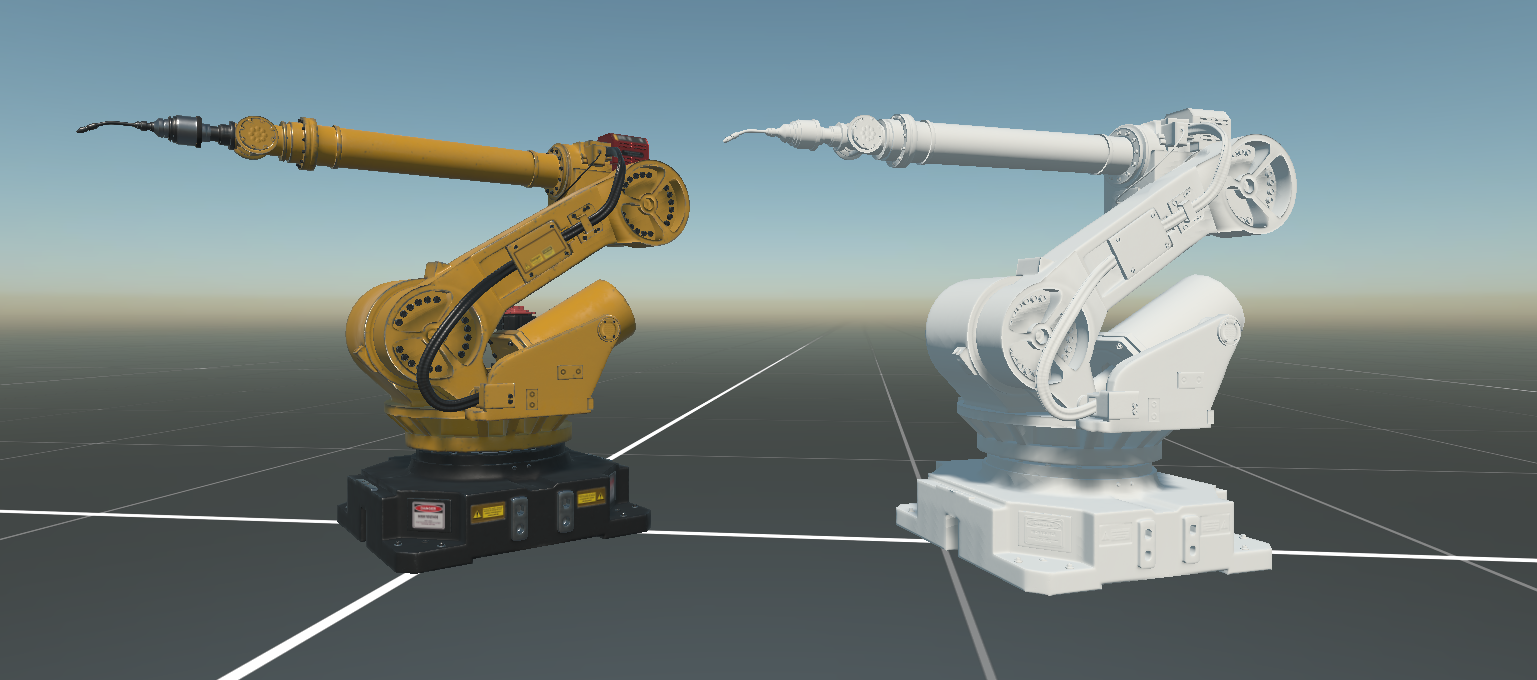

The Evergine.Runtimes.GLB and Evergine.Runtimes.STL NuGet packages provide a powerful and efficient solution for loading 3D models dynamically at runtime.

Dynamic Model Loading

Loading dynamic models has always been a challenge. To address this, Evergine introduces runtime packages that support the GLB and STL formats. These packages allow you to manage scenarios where your models:

✔️ Are not included in the initial application bundle.
✔️ Are not static application assets.
✔️ Are marked as raw assets.

With the Evergine.Runtimes libraries, you can now download models dynamically from the internet and display them seamlessly to users. This feature is particularly useful for applications requiring real-time model updates or user-generated content integration.

These advancements empower developers to build more dynamic and interactive applications, ensuring users have access to the latest content without frequent updates or large initial downloads.

🚀 More industrial formats will be supported in future updates as part of this new approach!

Getting Started

To start using the Evergine.Runtimes.GLB or Evergine.Runtimes.STL libraries, simply install the NuGet package and use the following code to load your assets:

protected async override void CreateScene()
{
    var model = await GLBRuntime.Instance.Read("MyModel.glb");
    // or
    var model = await GLBRuntime.Instance.Read("MyModel.stl");

    var assetsService = Application.Current.Container.Resolve<AssetsService>();
    var entity = model.InstantiateModelHierarchy(assetsService);
    this.manager.EntityManager.Add(entity);
}

Custom Shader Support

By default, models are loaded using the Standard Effect (Evergine’s built-in shader). However, if you want to load models using your custom shader, you must pass an additional CustomMaterialAssigner function to the Read method:

protected async override void CreateScene()
{
    var assetsService = Application.Current.Container.Resolve<AssetsService>();

    var model = await GLBRuntime.Instance.Read("Scenes/DamagedHelmet.glb", this.CustomMaterialAssigner);
    //var model = await STLRuntime.Instance.Read("Scenes/Star_Destroyer_Fixed.stl");

    var entity = model.InstantiateModelHierarchy(assetsService);
    this.Managers.EntityManager.Add(entity);
}

To use a custom shader, define a CustomMaterialAssigner function that assigns the correct textures, materials, and properties:

private async Task<Material> CustomMaterialAssigner(MaterialData data)
{
    var assetsService = Application.Current.Container.Resolve<AssetsService>();

    // Get textures
    var baseColor = await data.GetBaseColorTextureAndSampler();
    var metallicRoughness = await data.GetMetallicRoughnessTextureAndSampler();
    var normalTex = await data.GetNormalTextureAndSampler();
    var emissive = await data.GetEmissiveTextureAndSampler();
    var occlussion = await data.GetOcclusionTextureAndSampler();

    // Get Layer
    var opaqueLayer = assetsService.Load<RenderLayerDescription>(DefaultResourcesIDs.OpaqueRenderLayerID);
    var alphaLayer = assetsService.Load<RenderLayerDescription>(DefaultResourcesIDs.AlphaRenderLayerID);
    RenderLayerDescription layer;
    float alpha = data.BaseColor.A / 255.0f;
    switch (data.AlphaMode)
    {
        default:
        case Evergine.Framework.Runtimes.AlphaMode.Mask:
        case Evergine.Framework.Runtimes.AlphaMode.Opaque:
            layer = opaqueLayer;
            break;
        case Evergine.Framework.Runtimes.AlphaMode.Blend:
            layer = alphaLayer;
            break;
    }

    // Create standard material
    var effect = assetsService.Load<Effect>(DefaultResourcesIDs.StandardEffectID);
    StandardMaterial standard = new StandardMaterial(effect)
    {
        LightingEnabled = data.HasVertexNormal,
        IBLEnabled = data.HasVertexNormal,
        BaseColor = data.BaseColor,
        Alpha = alpha,
        BaseColorTexture = baseColor.Texture,
        BaseColorSampler = baseColor.Sampler,
        Metallic = data.MetallicFactor,
        Roughness = data.RoughnessFactor,
        MetallicRoughnessTexture = metallicRoughness.Texture,
        MetallicRoughnessSampler = metallicRoughness.Sampler,
        EmissiveColor = data.EmissiveColor.ToColor(),
        EmissiveTexture = emissive.Texture,
        EmissiveSampler = emissive.Sampler,
        OcclusionTexture = occlussion.Texture,
        OcclusionSampler = occlussion.Sampler,
        LayerDescription = layer,
    };

    // Normal textures
    if (data.HasVertexTangent)
    {
        standard.NormalTexture = normalTex.Texture;
        standard.NormalSampler = normalTex.Sampler;
    }

    // Alpha test
    if (data.AlphaMode == Evergine.Framework.Runtimes.AlphaMode.Mask)
    {
        standard.AlphaCutout = data.AlphaCutoff;
    }

    // Vertex Color
    if (data.HasVertexColor)
    {
        if (standard.ActiveDirectivesNames.Contains("VCOLOR"))
        {
            var directivesArray = standard.ActiveDirectivesNames;
            Array.Resize(ref directivesArray, directivesArray.Length + 1);
            directivesArray[directivesArray.Length - 1] = "VCOLOR";
            standard.ActiveDirectivesNames = directivesArray;
        }
    }

    return standard.Material;
}
