TrackXRArticulatedHand

This component is used to track and obtain the state of an articulated hand. A variety of MR and VR platforms support hand tracking, such as Mixed Reality (HoloLens) or Oculus Quest.

Supported Hand Joints

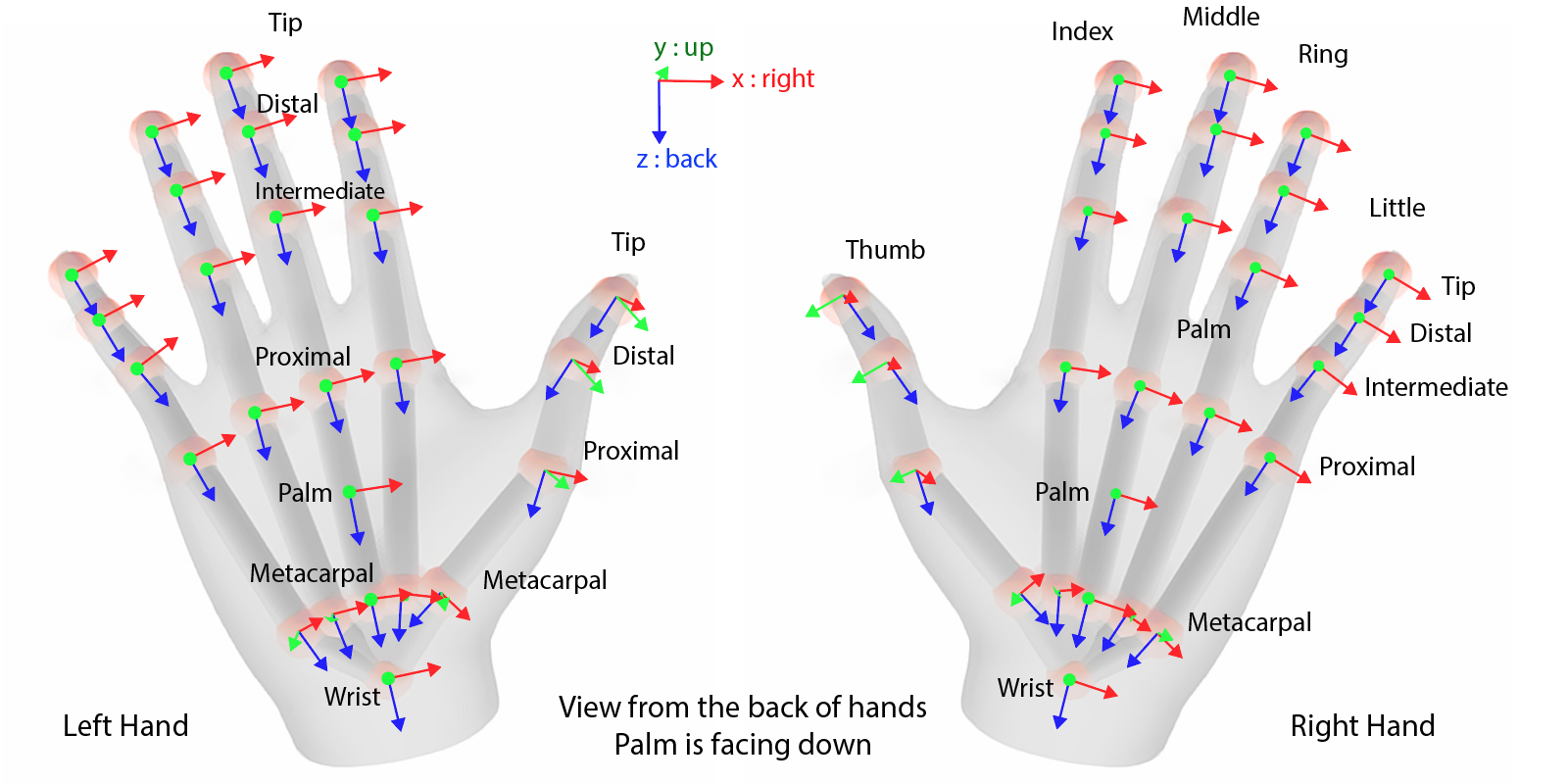

Evergine supports a list of hand joints to be tracked, described using the XRHandJointKind enumeration. Its values can be visually perceived in the following image:

Note

The entity transform will use the Palm joint pose.

Properties

The following properties have been added to this component to access hand joint information:

Property	Description
Handedness	This property allows you to indicate the handedness of the device you want to track: LeftHand to specify the left hand. RightHand to specify the right hand. Undefined if the device has no specific handedness.
TrackingLostMode	Specifies the strategy to follow if the device is not well-tracked: DisableEntityOnPoseInvalid disables the entity if the tracked pose is not valid. If the device is well-tracked again, the entity will be enabled again. This is the default value. KeepLastPose stops tracking the entity if the pose is not valid, maintaining the entity with the last received pose. DisableEntityOnDisconnection disables the entity only if the selected device is no longer connected.
SupportedHandJointKind	Returns an XRHandJointKind[] array of supported hand joints. Hand tracking in some devices can be limited and only support limited joints.
TryGetArticulatedHandJoint	Obtains the articulated hand joint state specified using an XRHandJointKind value. Returns true if the joint is successfully obtained.

Using TrackXRArticulatedHand

Create a TrackXRArticulatedHand from code

In the following code, you will learn how to create an entity that tracks a controller from code:

protected override void CreateScene()
{
    base.CreateScene();

    var material = this.Managers.AssetSceneManager
        .Load<Material>(EvergineContneet.DefaultMaterialID); // The hand material

    // Hand entity
    var leftHand = new Entity()
        .AddComponent(new Transform3D())
        .AddComponent(new MaterialComponent() { Material = material })
        .AddComponent(new TeapotMesh() { Size = 0.15f })
        .AddComponent(new MeshRenderer())
        .AddComponent(new TrackXRArticulatedHand()
        {
            Handedness = XRHandedness.LeftHand // select the left hand
        })
        .AddComponent(new DebugArticulatedhand());

    this.Managers.EntityManager.Add(leftHand);
}

Read the Hand Joints

A small sample to read the hand joint state:

public class DebugArticulatedhand : Behavior
{
    [BindComponent]
    private TrackXRArticulatedHand trackXRHand;

    protected override void Update(TimeSpan gameTime)
    {
        var lineBatch = this.Managers.RenderManager.LineBatch3D;
        if (trackXRHand.IsConnected)
        {
            // Iterate over all supported joints
            foreach (var supportedJoint in this.trackXRHand.SupportedHandJointKind)
            {
                // Obtain the joint pose and draw it...
                if (this.trackXRHand.TryGetArticulatedHandJoint(supportedJoint, out var handJoint))
                {
                    Matrix4x4.CreateFromTR(ref handJoint.Pose.Position, ref handJoint.Pose.Orientation, out var jointTransform);
                    lineBatch.DrawAxis(jointTransform, 0.01f); // Draw 1cm axis with the joint transform
                }
            }
        }
    }
}

Render Hands

Using the XRDeviceRenderableModel component, you can obtain a renderable model associated with an XR device. In the case of articulated hands, it provides a skinned mesh of the hand that follows the user's hand poses.

Note

You can add an optional MaterialComponent to the entity to specify which material will be used to render the hand meshes. If this component is not provided, they will be rendered with the default material.

Render Hands from code

A small example that shows how to render both hands using the XRDeviceRenderableModel component:

protected override void CreateScene()
{
    base.CreateScene();

    var material = this.Managers.AssetSceneManager
        .Load<Material>(EvergineContneet.DefaultMaterialID); // The hand material

    // Left hand
    var leftHand = new Entity()
        .AddComponent(new Transform3D())
        .AddComponent(new MaterialComponent() { Material = material })
        .AddComponent(new TrackXRArticulatedHand()
        {
            Handedness = XRHandedness.LeftHand // select the left hand
        })
        .AddComponent(new XRDeviceRenderableModel());

    this.Managers.EntityManager.Add(leftHand);

    // Right hand
    var rightHand = new Entity()
        .AddComponent(new Transform3D())
        .AddComponent(new MaterialComponent() { Material = material })
        .AddComponent(new TrackXRArticulatedHand()
        {
            Handedness = XRHandedness.RightHand // select the right hand
        })
        .AddComponent(new XRDeviceRenderableModel());

    this.Managers.EntityManager.Add(rightHand);
}
