Barriers

At any moment a GPU resource sits in a state that reflects what it is being used for: a render target, a shader resource, the source of a copy, the image being presented. Changing that use requires telling the backend, and the call that does it is a barrier.

Some backends track that state for you and accept the call without doing anything. Others need it, and render incorrectly when it is missing. Record a barrier every time a resource changes use, whichever backend you happen to be running: one that is not needed costs nothing, and one that is missing stays invisible until the code reaches a machine that does need it.

The model

You declare only the state you want next. There is no source state parameter anywhere in the API, because each backend already knows where the resource is and skips the transition when it already matches.

Barriers are recorded on a CommandBuffer, outside any render pass, and take effect in the order they were recorded relative to the rest of that buffer.

Buffer barriers

Buffer.Barrier names a buffer and the state to move it into.

commandBuffer.Barrier(new Buffer.Barrier(this.constantBuffer, Buffer.StateFlags.UniformBuffer));

Buffer.StateFlags

Buffer.StateFlags	Value	Description
None	0	No state.
CopySrc	1	Source of a copy.
CopyDst	2	Destination of a copy.
VertexBuffer	4	Read by the input assembler as vertices.
IndexBuffer	8	Read by the input assembler as indices.
UniformBuffer	16	Read as a constant buffer.
ShaderResource	32	Read by a shader.
UnorderedAccess	64	Written by a shader, usually a compute shader.

Texture barriers

Texture.Barrier works the same way, and its constructor defaults the subresource range to the whole texture.

commandBuffer.Barrier(new Texture.Barrier(this.texture, Texture.StateFlags.PixelShaderResource));

Texture.StateFlags

Texture.StateFlags	Value	Description
None	0	No state.
CopySrc	1	Source of a copy.
CopyDst	2	Destination of a copy.
PixelShaderResource	4	Sampled by a pixel shader.
NonPixelShaderResource	8	Sampled by any other stage.
RenderTarget	16	Drawn into as a colour attachment.
UnorderedAccess	32	Written by a shader.
DepthRead	64	Used as a depth buffer for reads.
DepthWrite	128	Used as a depth buffer for writes.
ResolveSrc	256	Source of a multisample resolve.
ResolveDst	512	Destination of a multisample resolve.
PresentSrc	1024	Handed to the swapchain for presentation.

Subresources

Texture.Barrier carries four extra fields that narrow the transition to part of the texture:

Field	Type	Description
firstMip	uint	First mip level to transition.
numMips	uint	Number of mip levels.
firstLayer	uint	First array layer to transition.
numLayers	uint	Number of array layers.

Warning

The constructor sets numMips and numLayers to the whole texture. Building the struct with an object initializer instead leaves both at 0, and a barrier covering zero subresources transitions nothing. Use the constructor, then narrow the range if you need to:

var barrier = new Texture.Barrier(this.texture, Texture.StateFlags.PixelShaderResource);
barrier.firstMip = 2;
barrier.numMips = 1;
commandBuffer.Barrier(barrier);

The range narrows what you are asking for, not what you are guaranteed. A backend may transition more of the resource than you named, so write the range you need and do not rely on the rest of the texture keeping its previous state.

Note

The state values are bit flags and combine with |, which is what the engine does internally when a texture is read by both pixel and non-pixel stages.

Batching

Every overload of Barrier ends at the same two-span method, and each call becomes one native barrier command. Transitioning several resources at one point belongs in one call:

graphicsCommandBuffer.Barrier(new[]
{
    new Texture.Barrier(this.writeableDepthTexture, Texture.StateFlags.NonPixelShaderResource),
    new Texture.Barrier(this.writeableColorTexture, Texture.StateFlags.UnorderedAccess),
});

The five overloads are:

Overload	Use
Barrier(Buffer.Barrier)	One buffer.
Barrier(Texture.Barrier)	One texture.
Barrier(ReadOnlySpan<Buffer.Barrier>)	Several buffers.
Barrier(ReadOnlySpan<Texture.Barrier>)	Several textures.
Barrier(ReadOnlySpan<Buffer.Barrier>, ReadOnlySpan<Texture.Barrier>)	Both at once.

When you need one

Situation	Transition to
Before a compute shader writes a texture	Texture.StateFlags.UnorderedAccess
Before a pixel shader samples it	Texture.StateFlags.PixelShaderResource
Before a vertex or compute shader samples it	Texture.StateFlags.NonPixelShaderResource
Before a copy or a blit	CopySrc on the source, CopyDst on the destination
Before presenting a swapchain texture you wrote yourself	Texture.StateFlags.PresentSrc
After updating a constant buffer that a shader will read	Buffer.StateFlags.UniformBuffer
Before a compute shader writes a buffer	Buffer.StateFlags.UnorderedAccess

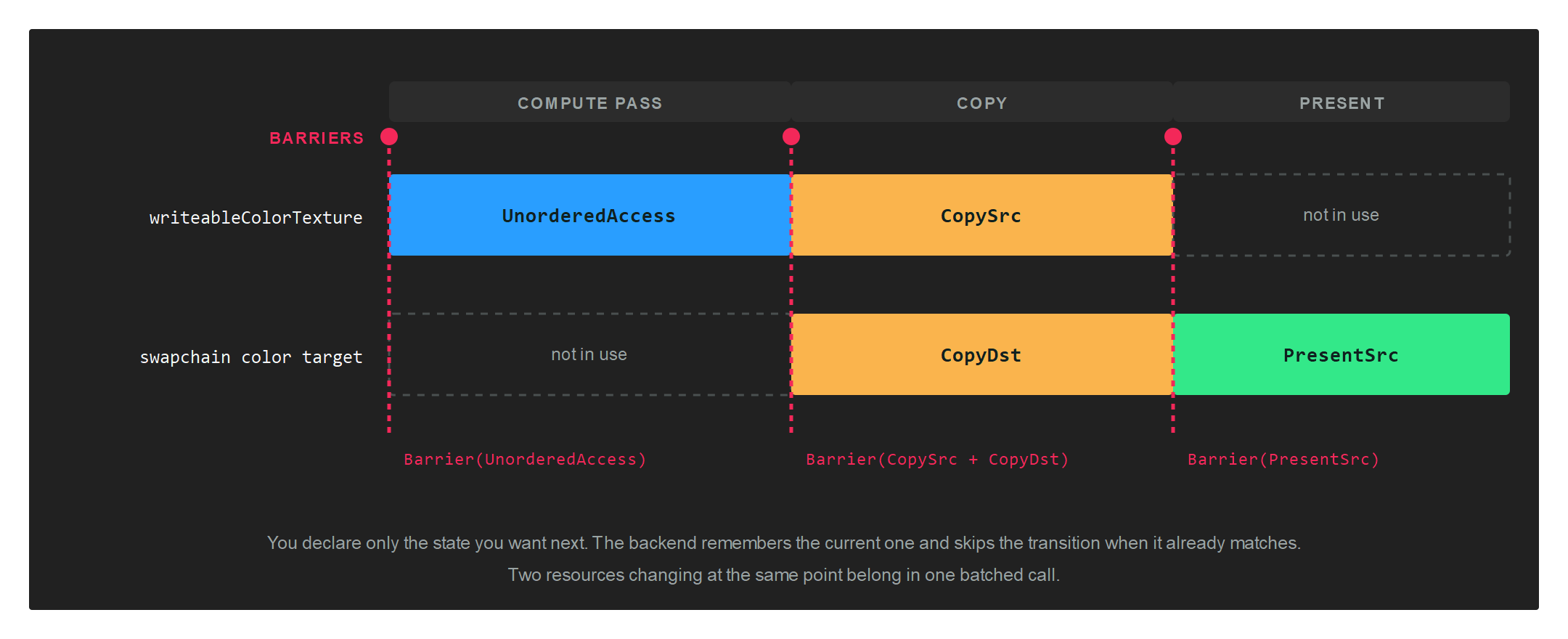

A full pass, from CopyToDepthTextureTest:

// Compute writes both textures...
graphicsCommandBuffer.Barrier(new[]
{
    new Texture.Barrier(this.writeableDepthTexture, Texture.StateFlags.NonPixelShaderResource),
    new Texture.Barrier(this.writeableColorTexture, Texture.StateFlags.UnorderedAccess),
});

// ...then the result is copied into the swapchain...
graphicsCommandBuffer.Barrier(new Texture.Barrier(this.writeableColorTexture, Texture.StateFlags.CopySrc));
graphicsCommandBuffer.Barrier(new Texture.Barrier(swapchainColor, Texture.StateFlags.CopyDst));

// ...and the swapchain is handed over for presentation.
graphicsCommandBuffer.Barrier(new Texture.Barrier(swapchainColor, Texture.StateFlags.PresentSrc));

A ResourceSet already knows its barriers

Creating a ResourceSet works out, from the layout, the state each resource has to be in. You do not repeat that by hand for resources bound through a set. CollectBarriers returns the list when you are writing your own submission code:

var bufferBarriers = new List<Buffer.Barrier>();
var textureBarriers = new List<Texture.Barrier>();
resourceSet.CollectBarriers(bufferBarriers, textureBarriers);

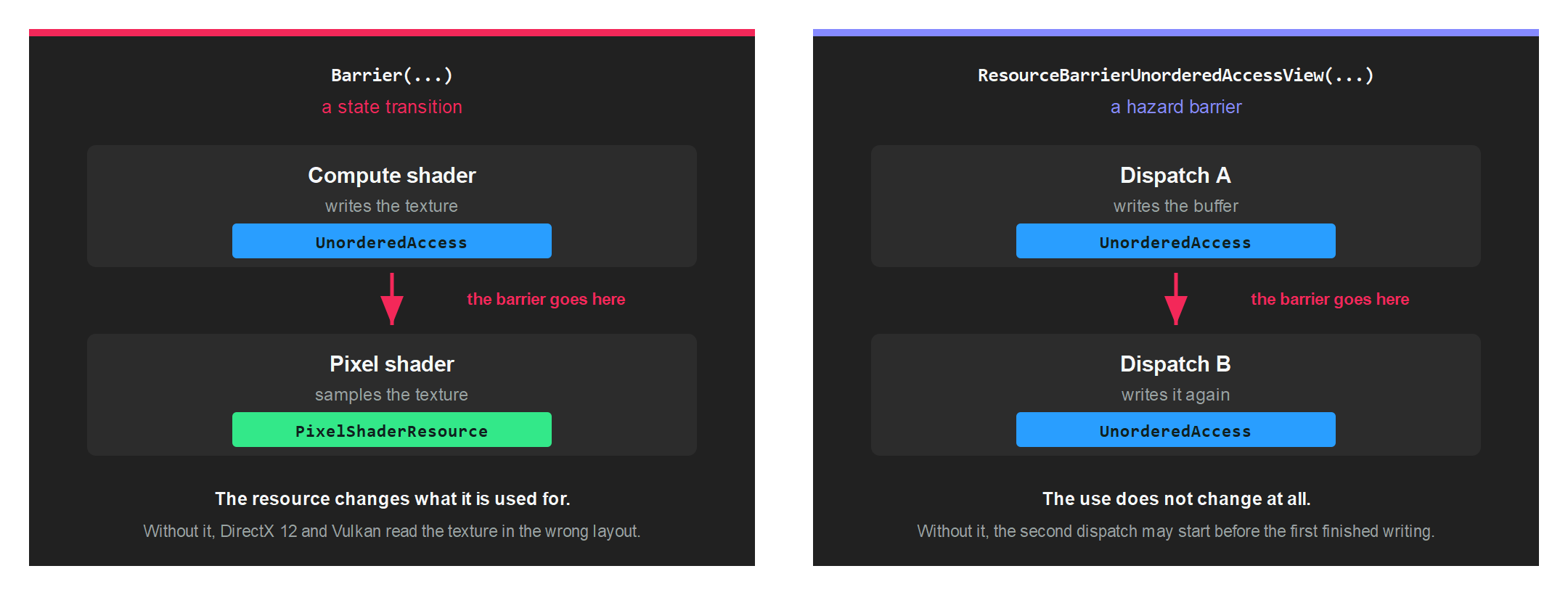

The other barrier

ResourceBarrierUnorderedAccessView shares part of its name with Barrier and does something different. It is not a state transition. It says that two pieces of work using a resource in the same way have to be ordered against each other.

commandBuffer.Dispatch2D(width, height);
commandBuffer.ResourceBarrierUnorderedAccessView(this.buffer);
commandBuffer.Dispatch2D(width, height);

Without it, the second dispatch is free to begin before the first has finished writing, and each reads whatever happens to be there. There is one overload for a Buffer and one for a Texture.

Record it for the same reason you record a state transition: the backends that need the ordering get it, and the ones that already guarantee it ignore the call.

Getting it wrong

A missing barrier fails quietly. Where the backend does not need one, everything draws as though the code were correct, so the defect travels undetected until it reaches a machine that does.

Two habits catch it early:

• Create the device with a ValidationLayer. A resource left in the wrong state is then reported as an error naming the resource, rather than as a picture that looks slightly wrong. See GraphicsContext.
• Run the application on more than one backend before shipping. The backend is decided by the GraphicsContext class you instantiate, so trying another is a one-line change.
