GraphicsPipeline

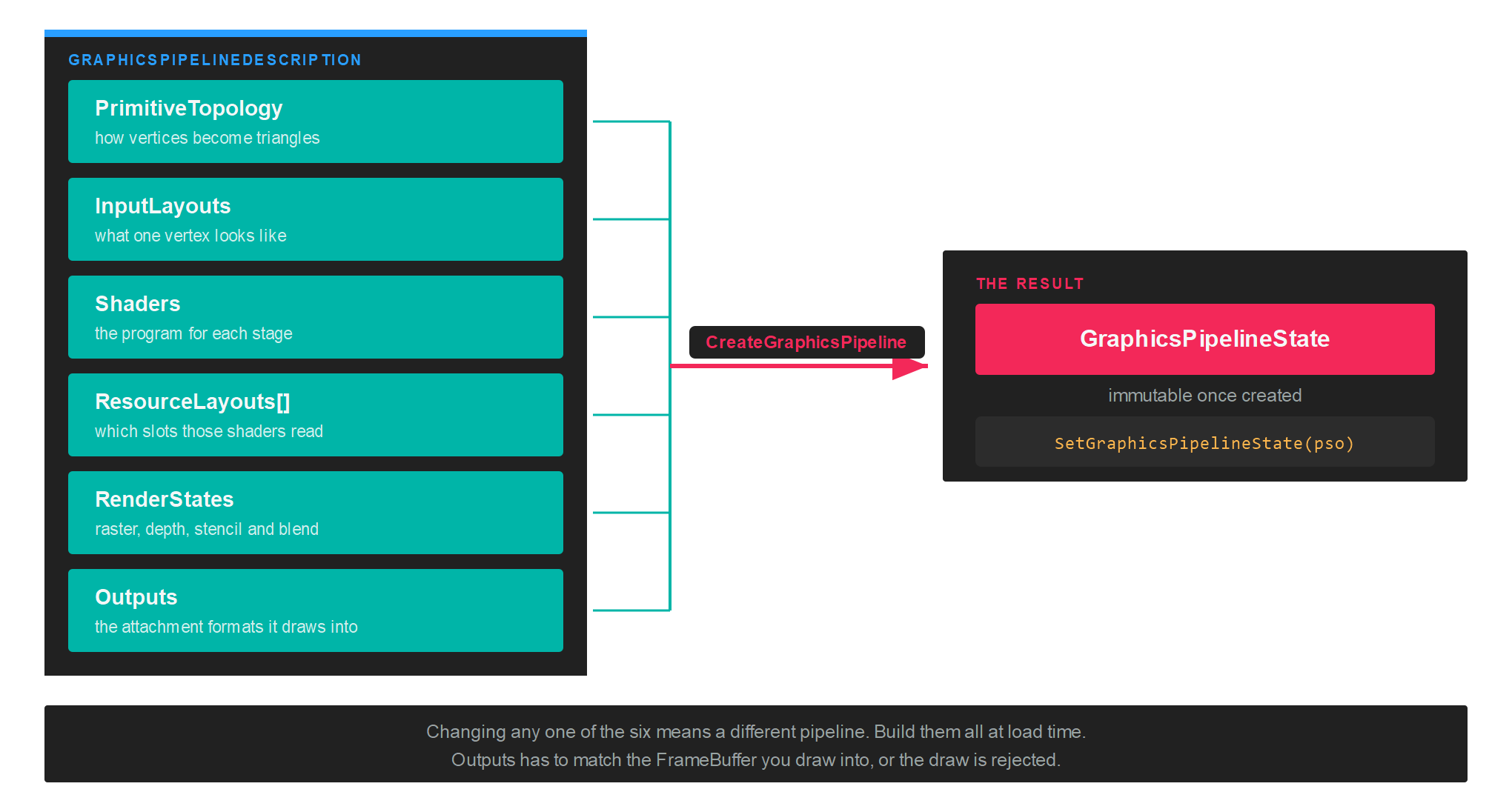

A GraphicsPipelineState holds everything the GPU needs to know about a draw, fixed at creation time: the shaders, the vertex format, the raster and blend and depth settings, the resource layouts, and the formats it will draw into. Binding one is the only per-draw cost, because none of it can change afterwards.

That immutability is the point. The older implicit APIs let you flip individual states between draws, and the driver then recompiled behind your back at unpredictable moments. Here the compilation happens once, when you create the object.

Creation

var pipelineDescription = new GraphicsPipelineDescription()
{
    PrimitiveTopology = PrimitiveTopology.TriangleList,
    InputLayouts = vertexLayouts,
    ResourceLayouts = new[] { resourceLayout },
    Shaders = new GraphicsShaderStateDescription()
    {
        VertexShader = vertexShader,
        PixelShader = pixelShader,
    },
    RenderStates = new RenderStateDescription()
    {
        RasterizerState = RasterizerStates.CullBack,
        BlendState = BlendStates.Opaque,
        DepthStencilState = DepthStencilStates.ReadWrite,
    },
    Outputs = this.frameBuffer.OutputDescription,
};

var pipelineState = this.graphicsContext.Factory.CreateGraphicsPipeline(ref pipelineDescription);

GraphicsPipelineDescription

Property	Type	Description
PrimitiveTopology	PrimitiveTopology	How the vertex stream is assembled into primitives.
InputLayouts	InputLayouts	The layout of each vertex buffer that will be bound.
ResourceLayouts	ResourceLayout[]	The layouts the shaders read, in the order their sets will be bound.
Shaders	GraphicsShaderStateDescription	One Shader per stage in use.
RenderStates	RenderStateDescription	Rasterizer, depth and stencil, and blend configuration.
Outputs	OutputDescription	The attachment formats this pipeline draws into. Take it from the FrameBuffer.

Important

Outputs has to describe the same formats and sample count as the framebuffer bound when the pipeline runs. Take it from frameBuffer.OutputDescription rather than building one by hand, and create a separate pipeline for each framebuffer whose format differs.

GraphicsShaderStateDescription

Property	Type	Description
VertexShader	Shader	The vertex stage.
HullShader	Shader	The hull stage, for tessellation.
DomainShader	Shader	The domain stage, for tessellation.
GeometryShader	Shader	The geometry stage.
PixelShader	Shader	The pixel stage.
ShaderInputLayout	InputLayouts	Maps vertex semantics to shader locations, where a backend needs that mapping stated.

Leave a stage null when you do not use it. See Shader for how each one is compiled.

PrimitiveTopology

PrimitiveTopology	Description
Undefined	No topology set.
PointList	Each vertex is a point.
LineList	Each pair of vertices is a separate line.
LineStrip	Each vertex continues the line from the previous one.
TriangleList	Each group of three vertices is a separate triangle.
TriangleStrip	Each vertex forms a triangle with the previous two.
LineListWithAdjacency	Line list with adjacent vertices, readable from a geometry shader.
LineStripWithAdjacency	Line strip with adjacent vertices.
TriangleListWithAdjacency	Triangle list with adjacent vertices.
TriangleStripWithAdjacency	Triangle strip with adjacent vertices.
Patch_List	Control point patches, for the tessellation stages.

Render states

RenderStateDescription groups the three fixed-function state blocks. RenderStateDescription.Default gives you a sensible starting point, and the preset classes cover the common combinations without building a description by hand.

Property	Type	Description
RasterizerState	RasterizerStateDescription	Fill mode, cull mode, depth bias, scissor.
DepthStencilState	DepthStencilStateDescription	Depth test and write, stencil operations.
BlendState	BlendStateDescription	Per render target blending and colour write mask.
StencilReference	int	The reference value for the stencil test. 0 by default.
BlendFactor	Vector4?	The constant used by the blend factor modes. null means { 1, 1, 1, 1 }.
SampleMask	int?	Sample coverage mask. 0xFFFFFF by default.

Presets

Class	Values
RasterizerStates	CullFront, CullBack, None, WireframeCullFront, WireframeCullBack, WireframeCullNone
BlendStates	Opaque, AlphaBlend, Additive, Multiplicative, NonPremultiplied
DepthStencilStates	None, ReadWrite, Read

DepthStencilStates.Read tests depth without writing it, which is what transparent geometry wants. DepthStencilStates.None skips the test altogether, for full screen passes.

Describing the vertex format

InputLayouts is built fluently. Each LayoutDescription corresponds to one vertex buffer, and each ElementDescription to one attribute inside it, in memory order:

var vertexLayouts = new InputLayouts()
      .Add(new LayoutDescription()
                  .Add(new ElementDescription(ElementFormat.Float4, ElementSemanticType.Position))
                  .Add(new ElementDescription(ElementFormat.Float4, ElementSemanticType.Color)));

Offsets are computed from the order and the formats, so the elements have to be listed exactly as they are packed in the buffer. Add a second LayoutDescription when you bind a second vertex buffer, for instance to keep per-instance data separate from per-vertex data.

Using the pipeline

Bind the pipeline inside the render pass, before the draw:

commandBuffer.BeginRenderPass(ref renderPassDescription);

commandBuffer.SetViewports(this.viewports);
commandBuffer.SetScissorRectangles(this.scissors);
commandBuffer.SetGraphicsPipelineState(this.pipelineState);
commandBuffer.SetResourceSet(this.resourceSet);
commandBuffer.SetVertexBuffers(this.vertexBuffers);

commandBuffer.Draw(vertexCount);

commandBuffer.EndRenderPass();

Tip

Create every pipeline you need during loading. Creating one mid-frame compiles shaders on the spot, and that shows up as a stall in exactly the frame you least want it.

Cleaning up

pipelineState.Dispose();
