Getting Started

---

Follow these steps to begin working with 3D Gaussian Splatting in your Evergine applications:

Project Setup

1. Create a New Project

Use Evergine Launcher to start a new project. Along with Windows, select an additional template for your target device.

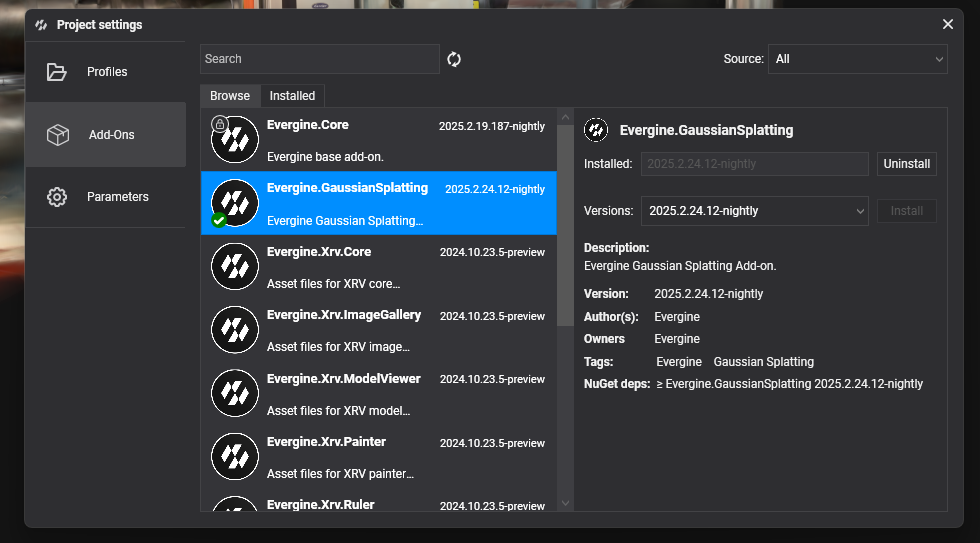

2. Add the Evergine.GaussianSplatting Add-on

Open Evergine Studio and add the Evergine.GaussianSplatting add-on to your project. Refer to this guide for instructions on adding add-ons.

Note

If you are using a Web profile, you need to perform the additional steps described in this document: Setup Gaussian Splatting on the Web Platform

Note

Gaussian Splatting add-ons are available as NuGet packages. For nightly builds, update nuget.config to include the Evergine nightly feed:

<?xml version="1.0" encoding="utf-8"?>
<configuration>
 <packageSources>
   <add key="nuget.org" value="https://api.nuget.org/v3/index.json" />
   <add key="Evergine Nightly" value="https://pkgs.dev.azure.com/plainconcepts/Evergine.Nightly/_packaging/>Evergine.NightlyBuilds/nuget/v3/index.json" />
 </packageSources>
</configuration>

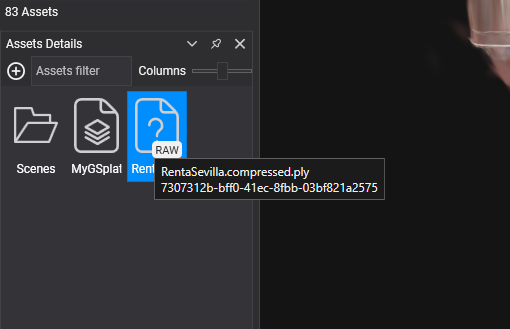

3. Add Your Splat File to the Project

In Evergine Studio, add a supported 3D Gaussian Splatting file (.splat or compressed .ply file) to your project:

4. Create the Gaussian Splatting Entity

In your scene, create a new Empty Entity and add the GaussianSplattingDrawable component. Set the SplatPath property to the path of the 3D Gaussian Splat file.

GaussianSplattingDrawable Properties

The GaussianSplattingDrawable component has the following properties:

Property	Description
SplatPath	The path of the Gaussian Splatting file. You can change this property at runtime to dynamically update the Gaussian Splatting scene.
IsSplatSceneLoaded	Indicates if a Gaussian Splatting scene is loaded.
Layer	The layer that will be used to render the Gaussian Splatting.

And the following event:

Event	Description
OnSplatSceneLoaded	Fired when a Gaussian Splatting scene is successfully loaded.

Create Gaussian Splatting from Code

This is the code necessary to load a Gaussian Splatting file into your Evergine scene:

var gaussianSplattingEntity = new Entity()
    .AddComponent(new Transform3D())
    .AddComponent(new GaussianSplattingDrawable()
    {
        SplatPath = "MySplatPlyFile.ply"
    });

this.Managers.EntityManager.Add(gaussianSplattingEntity);
