Setup Gaussian Splatting on the Web Platform

---

3D Gaussian Splatting requires special care and manual work to run on the Web platform.

To render Gaussian Splatting, Evergine internally creates a separate thread to perform a sorting algorithm for all splats. Due to .NET idiosyncrasies with WASM and the Web platform, you will need to follow these steps:

Setup Gaussian Splatting in Your Web Application

Prior to these steps, you need to:

• Properly set up the rest of the requirements provided in the Getting Started document.
• Ensure that your Evergine application has a valid Web profile.

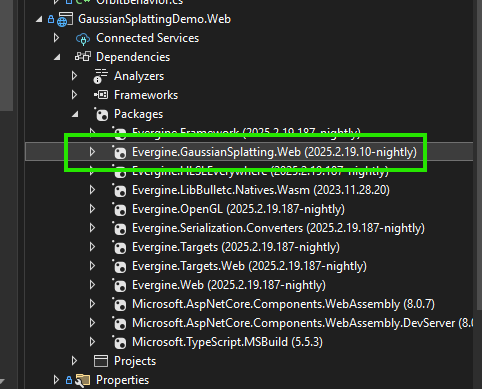

1. Add the Evergine.GaussianSplatting.Web NuGet Package

Add the Evergine.GaussianSplatting.Web NuGet package to your Web profile project (typically named [ApplicationName].Web).

Note

The version must match the installed Evergine.GaussianSplatting add-on version.

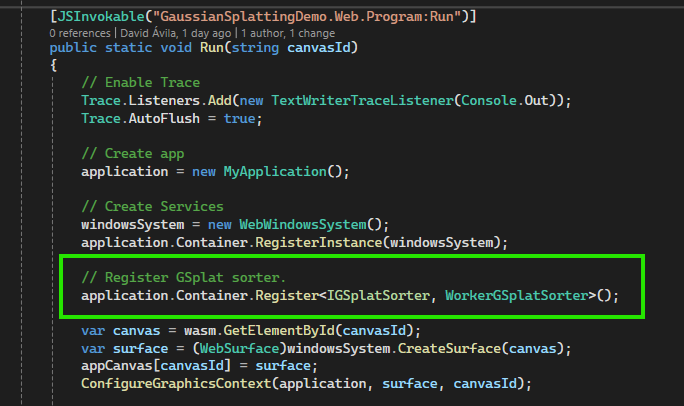

2. Register a Gaussian Splatting Sorter for the Web

Now that you have added the NuGet package, add the following code in the Program.cs file in the same project, inside your Run() method:

// Register GSplat sorter.
application.Container.Register<IGSplatSorter, WorkerGSplatSorter>();

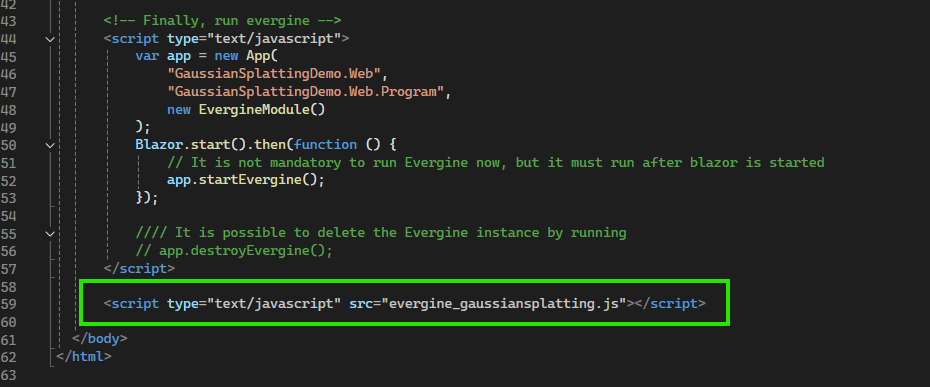

3. Add the JS File to Your index.html

In your index.html file, add the following line at the end of the file:

<script type="text/javascript" src="evergine_gaussiansplatting.js"></script>

4. Configure Web App Headers for Multithreading

To launch web worker threads in the web environment, add the following code to your Program.cs file located in your [ApplicationName].Web.Server project, just after the var app = builder.Build(); line:

if (app.Environment.IsDevelopment())
{
    app.UseWebAssemblyDebugging();
}

void ApplyHeaders(IHeaderDictionary headers)
{
    headers["Cross-Origin-Embedder-Policy"] = "require-corp";
    headers["Cross-Origin-Opener-Policy"] = "same-origin";
}

app.Use(async (context, next) =>
{
    ApplyHeaders(context.Response.Headers);
    await next();
});
