ResourceLayout

A ResourceLayout declares the shape of a binding: which slots a shader reads, what kind of resource sits in each one, and which stages can see them. It carries no data of its own. The data arrives later, in a ResourceSet built against this layout.

The same layout is referenced twice: once by the GraphicsPipeline or ComputePipeline that will run the shader, and once by every resource set you bind at draw time. That shared reference is how the backend knows a binding is valid before any command is recorded.

Creation

Build a ResourceLayoutDescription from one LayoutElementDescription per slot, then hand it to the factory:

var layoutDescription = new ResourceLayoutDescription(
    new LayoutElementDescription(0, ResourceType.ConstantBuffer, ShaderStages.Vertex),
    new LayoutElementDescription(0, ResourceType.TextureView, ShaderStages.Pixel),
    new LayoutElementDescription(0, ResourceType.Sampler, ShaderStages.Pixel));

var resourceLayout = this.graphicsContext.Factory.CreateResourceLayout(ref layoutDescription);

ResourceLayoutDescription

Property	Type	Description
Elements	LayoutElementDescription[]	One entry per slot the shader reads. Order matters, because a resource set fills these by position.
DynamicConstantBufferCount	int	Set by the constructor, which counts the elements that have AllowDynamicOffset. You do not assign it yourself.

LayoutElementDescription

Property	Type	Description
Slot	uint	The register number inside its own namespace. A TextureView and a Sampler can both be slot 0.
Type	ResourceType	What kind of resource fills this slot.
Stages	ShaderStages	The stages that can read it. Combine flags to expose one resource to several stages.
AllowDynamicOffset	bool	Lets you pass a byte offset when binding, instead of creating one buffer per draw. Constant buffers only. false by default.
Range	uint	Overrides the size in bytes of this binding. 0 binds the whole buffer. Constant buffers only. Set through the constructor's size parameter.

ResourceType

ResourceType	Description
ConstantBuffer	A Buffer read as a uniform buffer.
StructuredBuffer	A Buffer read as a read-only storage buffer.
StructuredBufferReadWrite	A Buffer a shader can also write to.
TextureView	A read-only view of a Texture.
TextureViewReadWrite	A view of a Texture a shader can also write to.
Sampler	A SamplerState.
AccelerationStructure	A ray tracing acceleration structure. See RaytracingPipeline.

ShaderStages

ShaderStages is a flags enum, so one element can be visible to several stages at once, as in ShaderStages.Vertex | ShaderStages.Pixel.

ShaderStages	Value	Description
Undefined	0	No stage.
Vertex	1	Vertex shader.
Hull	2	Hull shader.
Domain	4	Domain shader.
Geometry	8	Geometry shader.
Pixel	16	Pixel shader.
Compute	32	Compute shader.
RayGeneration	64	Ray generation shader.
Miss	128	Ray miss shader.
ClosestHit	256	Closest hit shader.
AnyHit	512	Any hit shader.
Intersection	1024	Intersection shader.
Mesh	2048	Mesh shader, from Shader Model 6.5.
Amplification	4096	Amplification shader, from Shader Model 6.5.

How a slot reaches the shader

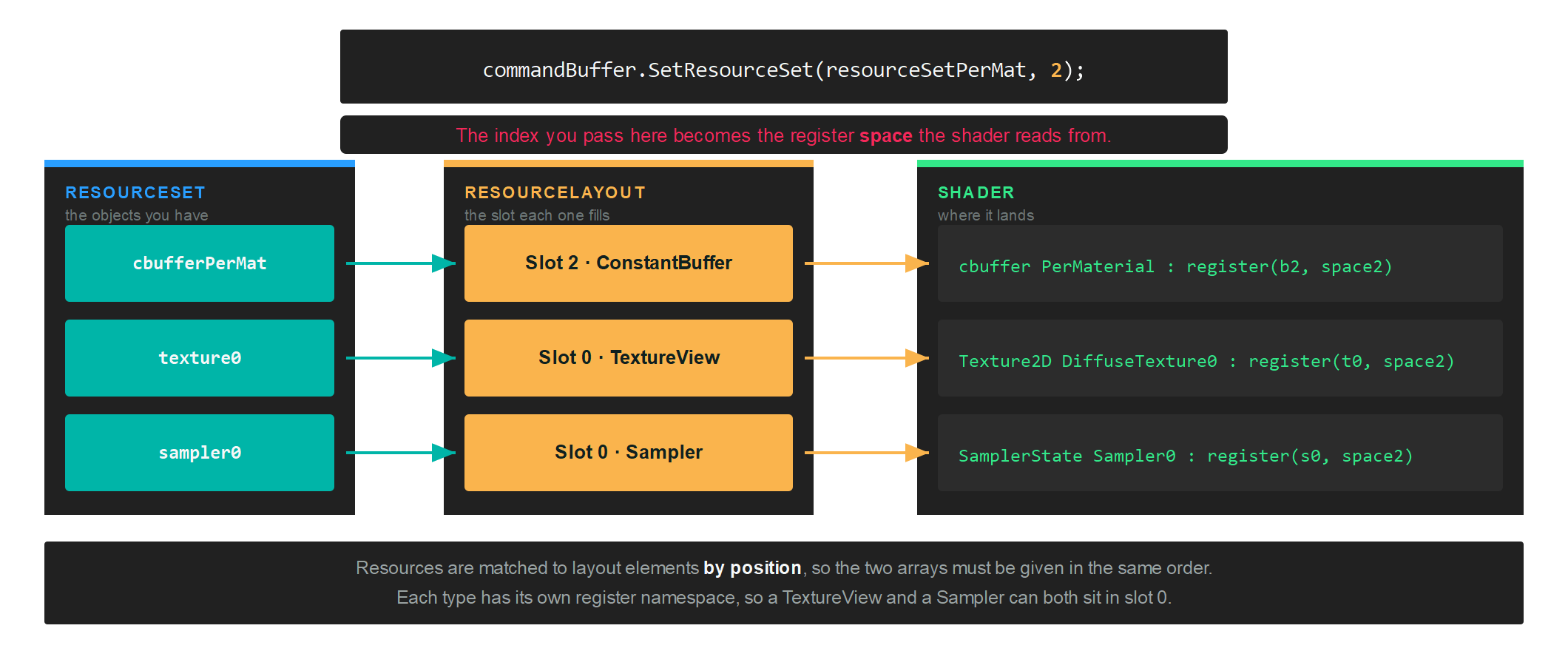

Two numbers decide where a resource lands. The Slot on the layout element is the register number, and the index you pass to SetResourceSet is the register space.

Each resource type has its own register namespace, so slot numbers only ever collide within a type. In HLSL those namespaces are b for constant buffers, t for read-only reads, u for read-write access and s for samplers.

Important

The elements in a layout and the resources in the set that fills it are matched by position, not by slot number. Reordering one array without the other silently binds the wrong resource.

Group elements by how often they change

A pipeline can take several layouts, and you bind each one to its own space. Splitting them by update frequency means the per-frame data is not rebound with every material:

// One layout per update frequency...
var perDrawDescription = new ResourceLayoutDescription(
    new LayoutElementDescription(0, ResourceType.ConstantBuffer, ShaderStages.Vertex, true, (uint)Unsafe.SizeOf<Matrix4x4>()));
var perViewDescription = new ResourceLayoutDescription(
    new LayoutElementDescription(1, ResourceType.ConstantBuffer, ShaderStages.Vertex));
var perMaterialDescription = new ResourceLayoutDescription(
    new LayoutElementDescription(2, ResourceType.ConstantBuffer, ShaderStages.Pixel),
    new LayoutElementDescription(0, ResourceType.TextureView, ShaderStages.Pixel),
    new LayoutElementDescription(0, ResourceType.Sampler, ShaderStages.Pixel));

// ...and the pipeline lists them in the order they will be bound.
var pipelineDescription = new GraphicsPipelineDescription()
{
    ResourceLayouts = new[] { perDraw, perView, perMaterial },
    // ...
};

At draw time each set goes to the index that matches its position in that array:

commandBuffer.SetResourceSet(this.resourceSetPerDraw, 0, new uint[] { this.stride * (uint)i });
commandBuffer.SetResourceSet(this.resourceSetPerView, 1);
commandBuffer.SetResourceSet(this.resourceSetPerMat, 2);

Tip

The first element above was declared with AllowDynamicOffset and an explicit size, which is what lets the third argument of SetResourceSet walk one shared constant buffer instead of allocating one per draw.

Cleaning up

resourceLayout.Dispose();
