Swapchain

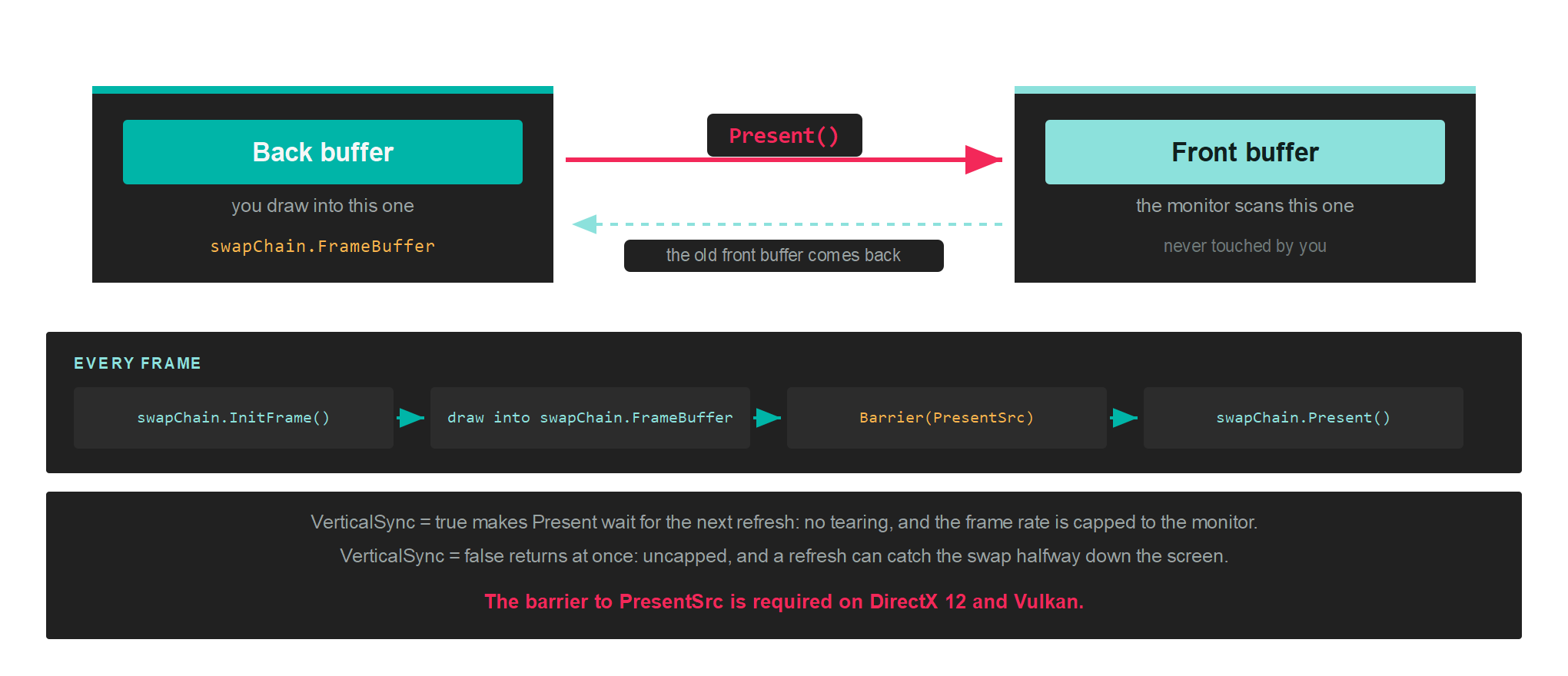

A swapchain is the set of buffers that puts your rendering on screen. You draw into one of them, and presenting hands it to the display while giving you back another to draw into.

The reason it is not a single buffer is timing. Monitors refresh between 60 and 240 times a second, far slower than the GPU can produce frames, and they scan the image out from top to bottom. Writing into the buffer the monitor is currently scanning means the top of the screen shows the old frame and the bottom shows the new one, split at whatever line the scan had reached. That split is called tearing.

Creation

A swapchain is created from the GraphicsContext, not from the factory, because it binds to a window rather than to the device alone:

// Create a window...
var windowSystem = new Evergine.Forms.FormsWindowsSystem();
var window = windowSystem.CreateWindow(windowsTitle, width, height);

// Describe the buffers, and point the description at the window's surface...
var swapChainDescriptor = new SwapChainDescription()
{
    Width = window.Width,
    Height = window.Height,
    SurfaceInfo = window.SurfaceInfo,
    ColorTargetFormat = PixelFormat.R8G8B8A8_UNorm,
    ColorTargetFlags = TextureFlags.RenderTarget | TextureFlags.ShaderResource,
    DepthStencilTargetFormat = PixelFormat.D24_UNorm_S8_UInt,
    DepthStencilTargetFlags = TextureFlags.DepthStencil,
    SampleCount = TextureSampleCount.None,
    IsWindowed = true,
    RefreshRate = 60,
};

var swapChain = this.graphicsContext.CreateSwapChain(swapChainDescriptor);
swapChain.VerticalSync = false;

SwapChainDescription

Property	Type	Description
SurfaceInfo	SurfaceInfo	The window surface to present to. See GraphicsContext for the windowing systems available.
Width	uint	Width of the swapchain buffers.
Height	uint	Height of the swapchain buffers.
RefreshRate	uint	Target screen refresh rate.
ColorTargetFormat	PixelFormat	Pixel format of the colour target.
ColorTargetFlags	TextureFlags	How the colour target may be bound. Combine flags with a logical OR.
DepthStencilTargetFormat	PixelFormat	Pixel format of the depth stencil target.
DepthStencilTargetFlags	TextureFlags	How the depth target may be bound.
SampleCount	TextureSampleCount	Multisample count for the swapchain buffers.
IsWindowed	bool	Whether the output is windowed rather than fullscreen.

TextureFlags and TextureSampleCount are documented in full on the Texture page.

Tip

Add TextureFlags.ShaderResource to ColorTargetFlags when a post-processing pass needs to sample the result before it is presented. Leaving it out costs nothing, but adding it later means recreating the swapchain.

Presenting

Four steps per frame:

this.swapChain.InitFrame();

var commandBuffer = this.commandQueue.CommandBuffer();
commandBuffer.Begin();

RenderPassDescription renderPassDescription = new RenderPassDescription(
    this.swapChain.FrameBuffer,
    new ClearValue(ClearFlags.All, Color.CornflowerBlue));
commandBuffer.BeginRenderPass(ref renderPassDescription);

// ...draws...

commandBuffer.EndRenderPass();
commandBuffer.End();
commandBuffer.Commit();

this.commandQueue.Submit();

this.swapChain.Present();

InitFrame() acquires the next buffer, which is why it comes before any recording. swapChain.FrameBuffer is the Framebuffer for the buffer it handed you, so read it after InitFrame rather than caching it across frames.

Important

A swapchain texture you wrote to yourself, rather than through a render pass, has to be transitioned into Texture.StateFlags.PresentSrc before Present(). A pass that ends with a copy into the swapchain is the usual case. See Barriers.

commandBuffer.Barrier(new Texture.Barrier(swapchainColor, Texture.StateFlags.PresentSrc));

Members

Member	Description
FrameBuffer	The framebuffer for the current back buffer.
SwapChainDescription	The description it was created from.
VerticalSync	Whether Present waits for the next refresh.
InitFrame()	Acquires the next back buffer. Call it at the start of each frame.
Present()	Hands the back buffer to the display.
ResizeSwapChain(width, height)	Recreates the buffers at a new size.
RefreshSurfaceInfo(surfaceInfo)	Points the swapchain at a new surface.
ChangeDepthStencilFormat(format)	Recreates the depth target with a different format.
GetCurrentFramebufferTexture()	The texture behind the current back buffer.
Name	Debug name, shown in graphics debugging tools.

Vertical sync

swapChain.VerticalSync = true;

With it on, Present waits for the next refresh before swapping. There is no tearing, and the frame rate is capped to the monitor. With it off, Present returns as soon as the swap is queued, the frame rate is uncapped, and a refresh can catch the swap partway down the screen.

Leave it on for anything a person looks at. Turn it off to measure throughput, where a capped frame rate hides the difference you are trying to see.

Resizing

A window resize invalidates the buffers, so handle it before the next frame:

protected override void OnResized(uint width, uint height)
{
    this.swapChain.ResizeSwapChain(width, height);

    this.viewports[0] = new Viewport(0, 0, width, height);
    this.scissors[0] = new Rectangle(0, 0, (int)width, (int)height);
}

ResizeSwapChain recreates the underlying textures, so anything that captured the old ones has to be rebuilt: your own framebuffers over swapchain textures, and resource sets that sampled them. Pipelines survive, because a resize does not change formats.

Warning

Wait for the GPU to finish with the old buffers before resizing, with commandQueue.WaitIdle(). Resizing under a frame that is still in flight destroys textures the GPU is reading.

Cleaning up

this.commandQueue.WaitIdle();
swapChain.Dispose();
