Low-level API

Evergine low-level graphics API

Evergine uses a custom low-level graphics API to send commands to the GPU.

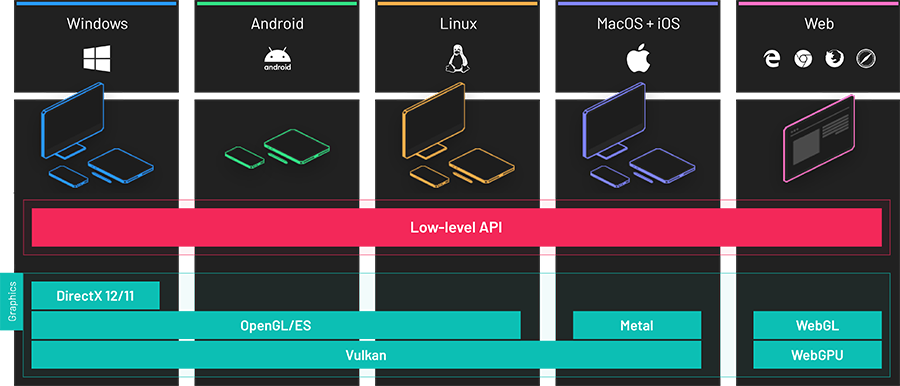

It is a cross-platform, backend-agnostic library that runs on top of DirectX, Vulkan, OpenGL, Metal and WebGPU. Its shape follows the explicit APIs (DirectX 12, Vulkan and Metal) so that nothing is hidden from you and nothing is guessed on your behalf, while staying compatible with the older implicit ones (DirectX 11, OpenGL and WebGL).

Everything in this section sits below the component layer. You do not need any of it to build a scene with entities and components, and most applications never touch it. Reach for it when you are writing a custom render pipeline, a compute pass, or an application that has no scene at all.

Note

The Low-Level API samples repository contains complete applications built directly on this API, without the component layer.

The object graph

Two objects create everything else. The GraphicsContext is the device, and its Factory is the only way to allocate GPU objects. Everything else is either a resource the factory made or a way to describe how those resources are used.

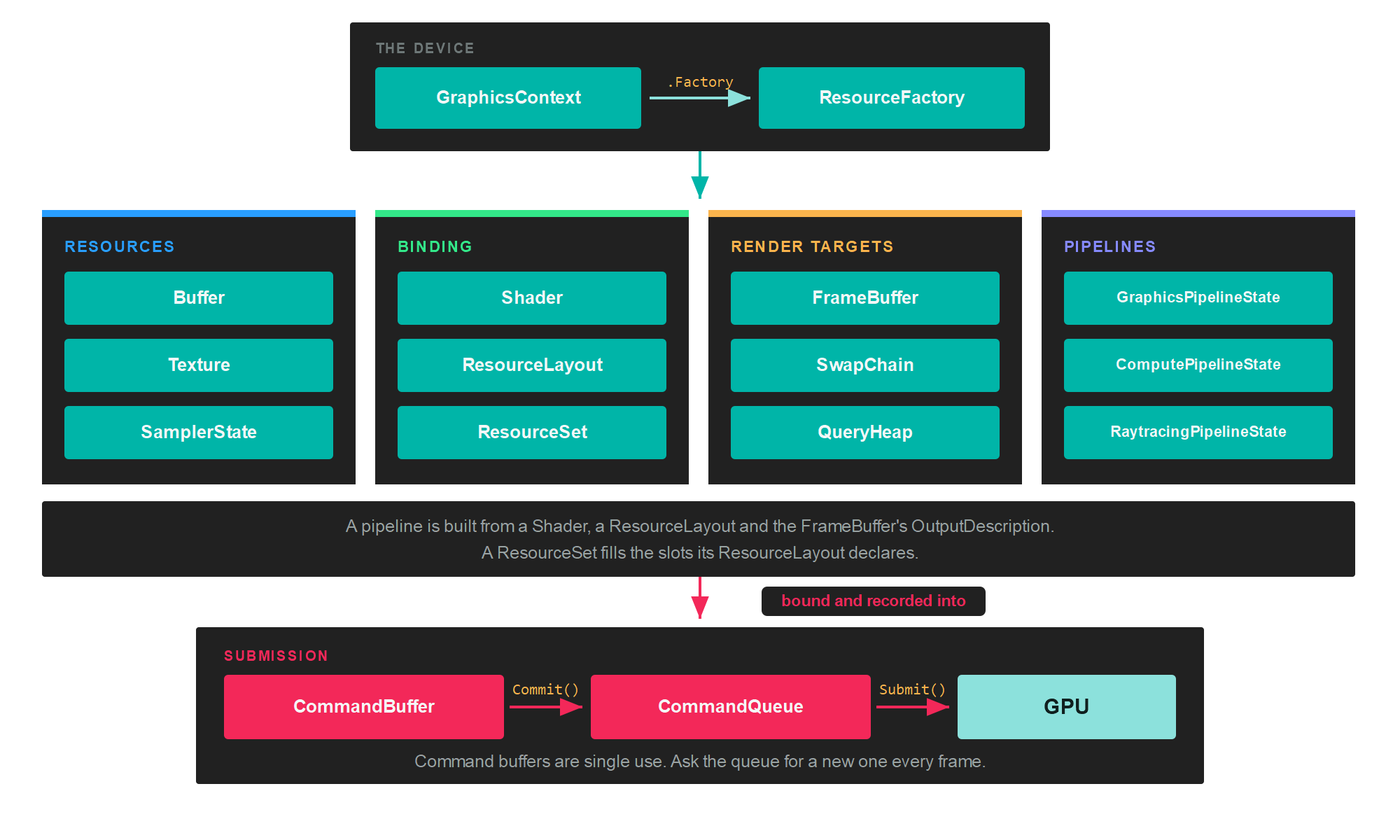

How the low-level graphics objects relate to each other

Reading the diagram from the top:

  • The GraphicsContext owns the device and the Factory. You create one per application, choosing the concrete class for the backend you want.
  • The resources hold data. A Buffer is a block of memory, a Texture is an image, and a SamplerState says how that image is read.
  • The binding objects connect resources to shaders. A ResourceLayout declares which slots a shader reads. A ResourceSet fills those slots with actual resources.
  • The render targets say where drawing lands. A FrameBuffer is a set of attachments, and a SwapChain is the one whose result reaches the screen.
  • A pipeline freezes the whole configuration of a draw into one immutable object: input layout, shaders, render states, resource layouts and output formats.
  • Work reaches the GPU through a CommandBuffer, which you get from a CommandQueue and give back to it.

The shape of a frame

Nothing you record executes when you call it. A command buffer accumulates commands, and the GPU sees them only after the queue submits the batch.

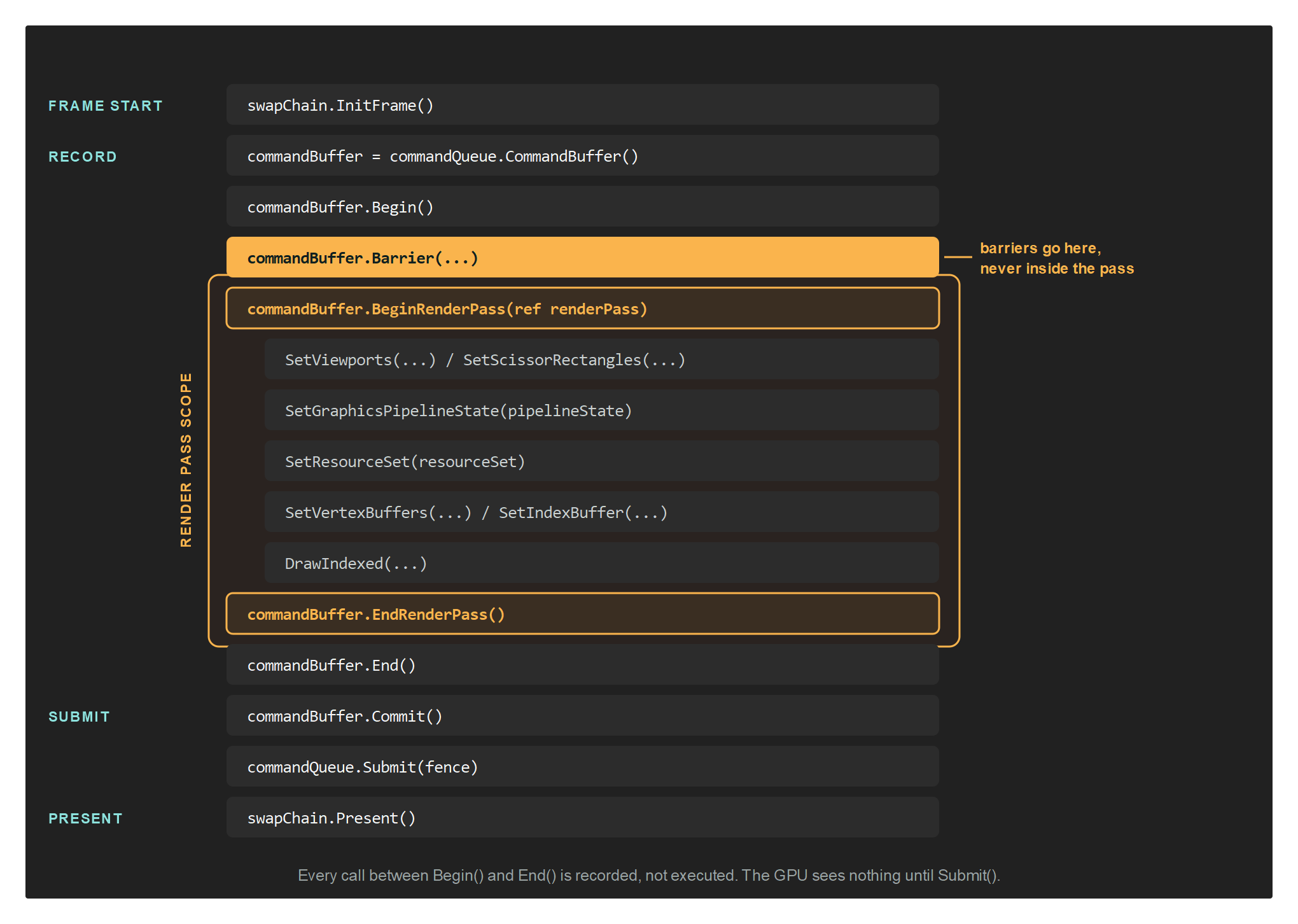

The order of calls in one frame, showing that barriers sit outside the render pass

That ordering has three rules worth memorising:

  1. A command buffer is single use. Ask the queue for a new one every frame instead of keeping one around.
  2. Barriers go outside the render pass. Record them between Begin() and BeginRenderPass(), or after EndRenderPass().
  3. Commit() hands the buffer to its queue. Submit() is what actually starts GPU work.

Here is the whole of a frame that draws one triangle, from DrawTriangleTest:

var commandBuffer = this.commandQueue.CommandBuffer();

commandBuffer.Begin();

RenderPassDescription renderPassDescription = new RenderPassDescription(this.frameBuffer, new ClearValue(ClearFlags.All, Color.CornflowerBlue));
commandBuffer.BeginRenderPass(ref renderPassDescription);

commandBuffer.SetViewports(this.viewports);
commandBuffer.SetScissorRectangles(this.scissors);
commandBuffer.SetGraphicsPipelineState(this.pipelineState);
commandBuffer.SetVertexBuffers(this.vertexBuffers);

commandBuffer.Draw((uint)this.vertexData.Length / 2);

commandBuffer.EndRenderPass();
commandBuffer.End();

commandBuffer.Commit();

this.commandQueue.Submit();
this.commandQueue.WaitIdle();

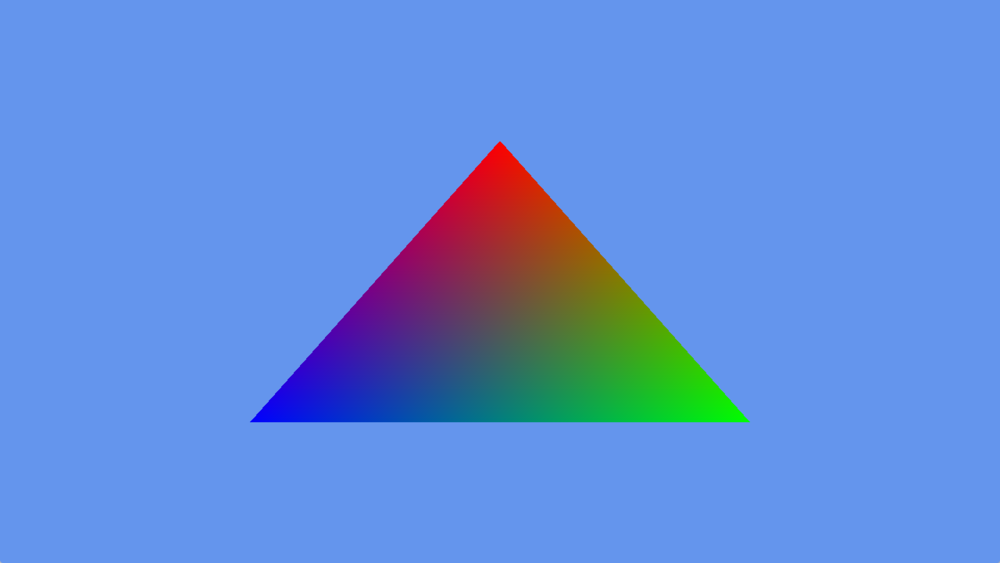

The triangle that code draws, on the cornflower blue it clears to

What those thirty lines produce: a cleared frame and one triangle whose colours are interpolated between its vertices.

Tip

That final WaitIdle() blocks the CPU until the GPU has drained the whole queue, which is the simplest thing that is correct and the slowest thing that works.

Which object do I need

To do this Create
Upload vertices, indices or constants Buffer
Store or sample an image Texture and SamplerState
Compile and load shader code Shader
Declare which slots a shader reads ResourceLayout
Put actual resources in those slots ResourceSet
Choose where the drawing lands FrameBuffer
Put the result on screen SwapChain
Fix the configuration of a draw GraphicsPipeline
Run work without rasterising anything ComputePipeline
Trace rays against a scene RaytracingPipeline
Get a command buffer and submit it CommandQueue
Record draws, dispatches and copies CommandBuffer
Declare that a resource changed use Barriers
Measure GPU time or count samples QueryHeap

What each backend supports

Query these at runtime through graphicsContext.Capabilities rather than testing BackendType, since ray tracing and mesh shaders depend on the physical device and not only on the API.

Backend Context class Compute Ray tracing Mesh shaders
DirectX 11 DX11GraphicsContext Yes No No
DirectX 12 DX12GraphicsContext Yes Device dependent Device dependent
Vulkan VKGraphicsContext Yes Device dependent Device dependent
Metal MTLGraphicsContext Yes No No
OpenGL / OpenGL ES GLGraphicsContext No No No
WebGPU WGPUGraphicsContext Yes No No
Important

Capabilities are the portable way to ask. Branching on BackendType instead bakes today's answer into your code, and the answer changes with the device as well as with the backend.
